Model Number: | SG60-50 | Application: | Spraying, Submersible |
---|---|---|---|
Output: | 60L/min | Working Pressure: | 5.5 MPa(55bar) |
Piston Stroke: | 145 Mm | Cylinder Diameter: | 90 Mm |
Piston Speed: | 82 /min | Product Name: | Mortar Pump Machine |
Highlight: | mortar spraying machine,mortar mixer pump machine |

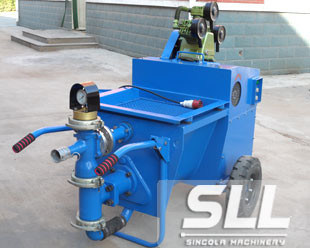

High Efficiency Mortar Pump Machine With Electric Double Cylinder Piston Pump
Product Description
SG60-50 reciprocating piston pump for construction with double piston and single acting is widely used in construction for its convenient maintenance, compact structure, high working pressure and high efficiency, working reliability, and it is hydraulic piston pump etc. it can be used not only for grouting cement mortar and sand mortar, combined with accessories such as compressor and spraying gun, it is also ideal equipment applied in spraying. It is widely used for grouting in mine gallery, rail and road tunnel, hydropower construction, slope consolidation, underground engineering, subway and civil engineering etc, above all, it is convenient for maintaining.
SG60-50 Mortar Pump Machine Technical Parameters
Item | SG60-50 |
Cylinder Dia | φ90 mm |
Output | 60 L/min |
Pressure | 5 Mpa(50bar) |
Piston stroke | 145 mm |
Piston Speed | 82 /min |
Inlet diameter | 75 mm |
Outlet diameter | 50 mm |
Max.Aggregate.size | 6 mm |
Cement : Sand | ≥1:3 |
Dimensions | 1400×650×920 mm |
Weight | 700 kg |
Power unit | 7.5 kW(Electric)/10hp(Diesel) |
Note: Single or Double Passageway.Skid or Tyre |
Features of mortar pump machine
1. Single piston single acting;
2. Switch by ball valve;
3. Mechanical transmission, lower failure rate;
4. Integrate pump head and hopper; prevent education and deposition together with the paddle agitating;
5. Compact structure, convenient for maintaining ;
FAQ:
1. How many people that are need to operate this kind of machine?
Two persons, one loading the material and the other for the spraying.
2. MOQ: 1 set can be acceptable for Trail Order.
Over 3 sets can enjoy the wholesale price.
Welcome to join us as our sales agent in your market.
3. How long the life time the main engine?
more than than years, 1 year guarantee for quality problems.
4. Does this kind of machine can work singlely?
No, it need match one air compressor to cooperate.
5. Delivery time:
1 week for Standard Model(motor: 380v 50hz 3phases)
15-25 days for Customized Model.
6. Payment:
T/T, 30% deposit,70% before shipment.
L/C at sight (high bank charge, not suggest , but acceptable).
100% T/T in advance (specially for air shipment or small amount).
7. Available Shipment:
FOB Qingdao
FOB Shanghai
FOB Tianjin
