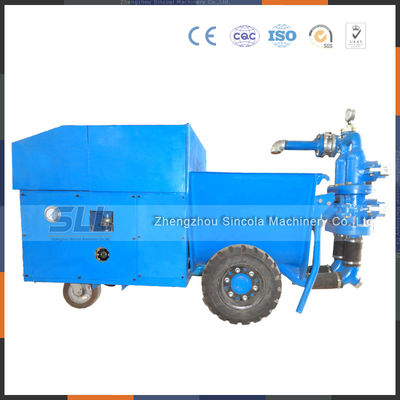

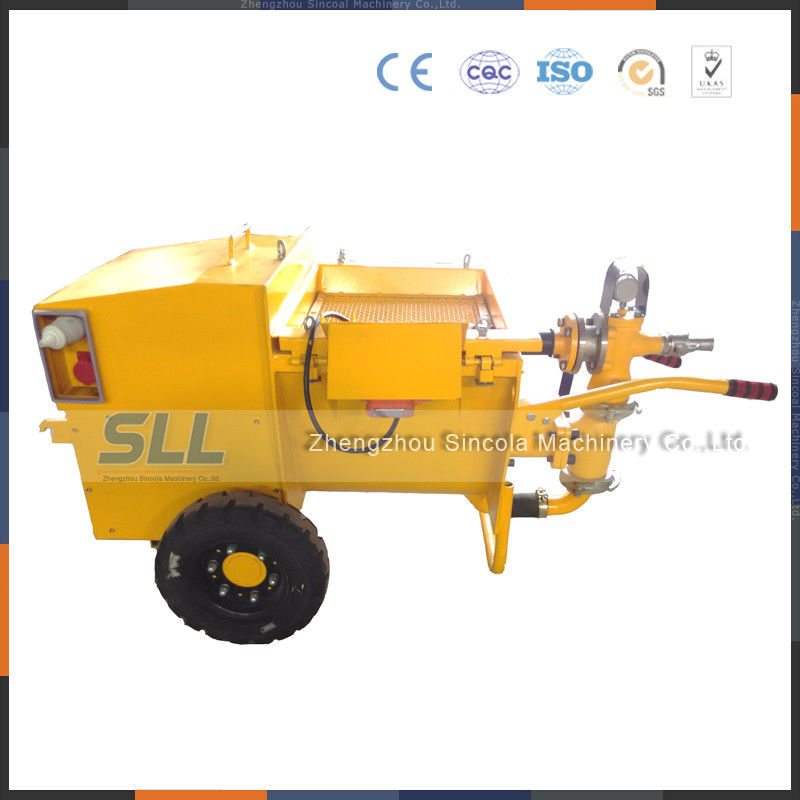

High Working Pressure Mortar Pump Machine Dry Cement Pump CE Approved

China High Working Pressure Mortar Pump Machine Dry Cement Pump CE Approved supplier
High Working Pressure Mortar Pump Machine Dry Cement Pump CE Approved supplier High Working Pressure Mortar Pump Machine Dry Cement Pump CE Approved supplier

Large Image :  High Working Pressure Mortar Pump Machine Dry Cement Pump CE Approved

Product Details:

Place of Origin: Zhengzhou Henan China
Brand Name: SINCOLA
Certification: CE
Model Number: SG50-40

Payment & Shipping Terms:

Minimum Order Quantity: One Set
Price: Negotiable
Packaging Details: Standard Exported Wooden Case Package
Delivery Time: 5-8 working days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 80 sets per month
Detailed Product Description
Model Number: SG50-40 Application: Spraying, Submersible
Output: 50L/min Working Pressure: 5 MPa(50bar)
Piston Stroke: 145 Mm Cylinder Diameter: 90 Mm
Piston Speed: 82 /min Product Name: Mortar Pump
High Light:

mortar spraying machine

,

mortar mixer pump machine

High Working Pressure Mortar Mixer Pump Machine Dry Cement Pump CE Approved

Introduction:



SG5040 MORTAR PUMP with single cylinder and double acting is widely used for its convenient maintenance, high working pressure and high efficiency, working reliability, compact structure etc. it can be used not only for grouting cement mortar and sand mortar, combined with accessories such as compressor and spraying gun, it is also perfect equipment applied in spraying. It is widely used for grouting in mine gallery, rail and road tunnel, hydropower construction, slope consolidation, underground engineering, subway and civil engineering etc.





Features:



1. single piston single acting;
2. Switch by ball valve;
3. Mechanical transmission, lower failure rate;
4. Integrate pump head and hopper; prevent eduction and deposition together with the paddle agitating;
5. Compact structure, convenient for maintaining ;



Applications:



Single Cylinder Mortar Pump is widely used for its convenient maintenance.it can be used not only for grouting cement mortar and sand mortar, combined with accessories such as compressor and spraying gun, it is also ideal equipment applied in spraying. It is widely used for grouting in mine gallery, rail and road tunnel, hydropower construction, slope consolidation, underground engineering, subway and civil engineering etc.
The SG5040 Mortar Pump is available in the following versions.
BASIC Electric drive
DIESEL engine drive



Parameter:



Model: SG5040
Output 50 L/min
Cylinder Dia φ 90 mm
Working Pressure 4 MPa(40bar, 580psi)
Piston stroke 85 mm
Piston Speed 95 /min
Inlet diameter 75 mm
Outlet diameter 50 mm
Max. Aggregate. size 6 mm
Cement/Sand ≥ 1/3
Power 5.5 kW(Electric)/10hp(Diesel)
Overall Dimensions 1610× 1024× 900 mm
Weight 300 kg



High Working Pressure Mortar Pump Machine Dry Cement Pump CE ApprovedHigh Working Pressure Mortar Pump Machine Dry Cement Pump CE Approved



Remarks:



Packing: Wooden case with international standard or according to your requirement;

SG50-40 Packing Size of machine: L×W×H=1810× 1224× 1100 mm

Weight of machine:380kg (After packed in wooden case)





Our services:



1. We are manufacturer company.
2. with over 20 years experience to produce construction machinery

3. Engineers available to your countries for machine.
4. 15 days delivery after received you deposit, one year Guaranteed.
5. The international packing standard of wooden case packing or as customers' needs
6. provide product details in the process of production
7. we can provide Trade Assurance. you will get 100% Money Refund FOR quality problem or late shipment.
8. Provide a complete set of accessories for free.





After-sale-services:



When you buy, Detailed User Manual in English, Certificate of Approval, Detailed shipping list, warranty card ects will put together with machine for you, take machine testing video and picture for you; any time welcome you come to visit our factory to check it, and any questions online always answer for you.
