| Features: | Automatic,Easy Operation | Application: | Dry Mix Mortar Manufacturing Plant |
|---|---|---|---|
| Voltage: | Customized 220V/380V/415V | Capacity: | 15-20 T/h |
| Usage: | Rednering Plaster Mortar | Warranty: | 1 Year |
| High Light: | concrete production line,dry mix mortar manufacturing plant |
||
Introduction
1. Dry powder filler putty production line (or dry filler wall putty mix plant) is a set of machinery that produces dry putty powder for construction industry and other uses.
2. Full Automatic Dry putty powder mix plant mainly produces ordinary premixed dry putty powder or dry putty powder with special function for interiro and exterior wall. The whole putty powder production line includes Mixing machine, Drying system, Screening system, Measuring system, Bulk and Packing system, Dedusting system, Electrical system and Spot agitation tank.
3. It can be adopted in production processes of special mortar, ordinary cement mortar, anti-crack mortar, thermal mortar, energy saving wall materials, etc.

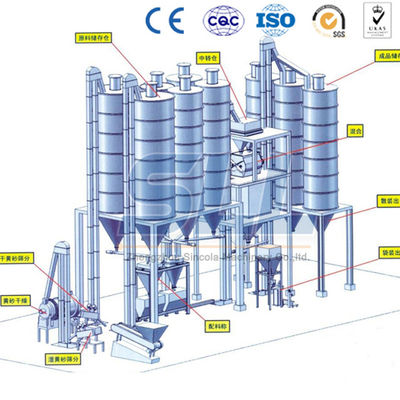

Working process of Dry mix mortar production line
Full autoamtic dry mortar plant plaster dry mortar production line,the pretreatment raw materials will be lifted into raw material silo, then raw material is flowing through the hopper, Next, by computer ingredients, screw conveyor metering, mixing and packaging machine package to bags or in bulk or finished goods warehouse into the car storage process into the final product.
Technical Parameters
| Mode | Capacity | Area | Height | Note |
| Simple | 1-5t/h | 40m2 | 3m | Manual batching and packing |
| Basic | 5-15t/h | 40-60m2 | 6-10m | Manual batching ,automatic packing |
| Semi Automatic Serial | 5-15t/h | 40-80m2 | 8-12m |
Automatic batching of coarse material,manual batching of additive ,automatic packing |
| Full Automatic | 5-50t/h | 40-100m2 | 10-25m |
Automatic batching of coarse material,manual batching of additive,automatic packing |
| Full Automatic Tower | 55~100t/h | 60~500m2 | 10-30m |
Automatic batching of coarse material,manual batching of additive,automatic packing |
Application
Bonding mortar: Masonry mortar, wall and floor tile adhesive mortar, anchorage mortar etc.
Decoration mortar: Decorative plaster, inner and outer wall putty, colorful decoration mortar etc.
Protection mortar: Water-proof mortar, anti-corrosion mortar, self-leveling mortar, wear resistance mortar, thermal insulation mortar, sound insulation mortar, repair mortar, mildewproof mortar, shielding mortar etc.
(1) FCL: export equipment standard container
(2) wooden box: The size of the packing box shall be designed according to the equipment
The widget is attached to the machine
Soft wood is placed in front or back of the machine to protect it.
The plastic film is covered in this machine for waterproofing
The equipment into the container with the crane
