Product Details:
Payment & Shipping Terms:
|
| Features: | Full Automatic Tile Adhesive Premix | Application: | Dry Mortar Production Line |
|---|---|---|---|
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas | Product Name: | Dry Mortar Mixing Plant |
| Keyword: | Dry Powder Mortar Mixing Plant | Warranty: | 1 Year |
| High Light: | dry mix mortar production line,dry mix mortar manufacturing plant |
||
Introduction
The capacity of dry mortar plant is 5-100t/h.
It can be full automatic or semi automatic. The plant structure type can be workshop type, series type or tower type.
The machine cover space is 50-1000m².

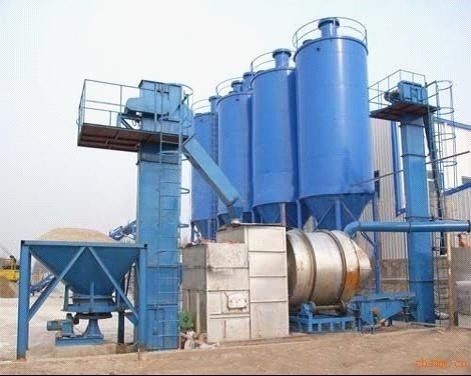

The large dry mortar plant includes sand dryer, burning furnace, bucket elevator, screen, storage silo, screw conveyor, weighing system, mixer, packing machine, dust collector and control system.
Usage
Masonry mortar; Thin and smooth wall mortar; Hand-plastering screeding mortar; Colored coating mortar; Water-proof mortar; Plaster powder; Wall plastering mortar; Ceramic tile adhesive mortar; Self-leveling mortar; Heat-preservation mortar.
Technical Parameters
| Mode | Capacity | Area | Height | Note |
| Simple | 1-5t/h | 40m2 | 3m | Manual batching and packing |
| Basic | 5-15t/h | 40-60m2 | 6-10m | Manual batching ,automatic packing |
| Semi Automatic Serial | 5-15t/h | 40-80m2 | 8-12m |
Automatic batching of coarse material,manual batching of additive ,automatic packing |
| Full Automatic | 5-50t/h | 40-100m2 | 10-25m |
Automatic batching of coarse material,manual batching of additive,automatic packing |

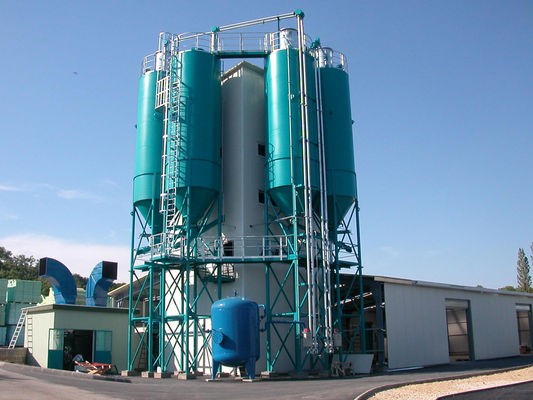

| Full Automatic Tower | 55~100t/h | 60~500m2 | 10-30m |
Automatic batching of coarse material,manual batching of additive,automatic packing |
5 TPH (40m³) Small Dry Mortar Plant is used for producing dry mortar which productivity is 1-5t/h. It's mainly composed of screw mixer, screw elevator, vertical finished prodution silo, valve packing machine, also includes air compressor, electric control cabinet etc. The machine has covers an area of small, less investment, quick effect, high efficiency, the advantages of simple operation, three people can operation, 2-4 tons per hour. This machine is fully sealed production, no dust. Computer measurement automatic packaging.
Raw Materials of gypsum/putty powder production line
1. Cementing material: cement, lime, plaster.
2. Aggregate: yellow sand, quartz sand, limestone, dolomite, expanded perlite, etc.
3. Mineral admixture: industrial byproduct, fly ash, pozzolana, fine silica powder etc.
4. Water-retention and thickening material.
5. Chemical additives.
Mixing Time: 40~180s, depending on different raw materials;
Mixing Effect: >95%, based on the mixing ratio 1:1000;
Mixing Paddles: Anti-wear cast steel, 23Mn;
Mixing Drum Thickness: 8mm/14mm
Discharging System: Two doors, Pneumatic Discharge, AIRTAC cylinders.
