Product Details:
Payment & Shipping Terms:
|
Model Number: | SG50-40 | Application: | Spraying, Submersible |
---|---|---|---|
Output: | 50L/min | Working Pressure: | 5 MPa(55bar) |
Piston Stroke: | 145 Mm | Cylinder Diameter: | 90 Mm |
Piston Speed: | 82 /min | Product Name: | Mortar Pump Machine |
High Light: | mortar spraying machine,cement mortar pump |

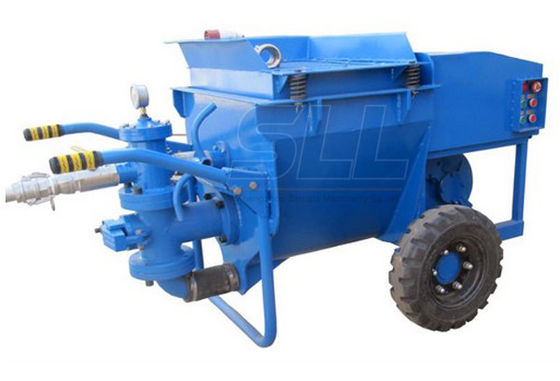

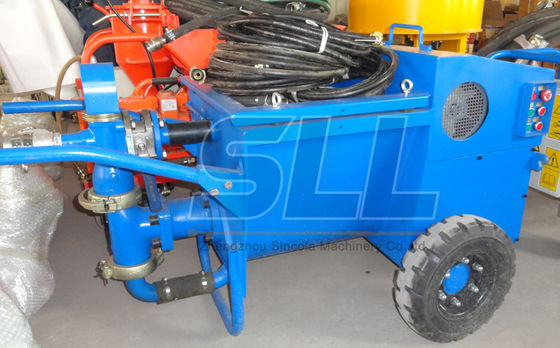

High Efficiency Mortar Pump Machine With Electric Double Cylinder Piston Pump
Product Description
SG60-50 reciprocating piston pump for construction with double piston and single acting is widely used in construction for its convenient maintenance, compact structure, high working pressure and high efficiency, working reliability, and it is hydraulic piston pump etc. it can be used not only for grouting cement mortar and sand mortar, combined with accessories such as compressor and spraying gun, it is also ideal equipment applied in spraying. It is widely used for grouting in mine gallery, rail and road tunnel, hydropower construction, slope consolidation, underground engineering, subway and civil engineering etc, above all, it is convenient for maintaining.
SG60-50 Mortar Pump Machine Technical Parameters
Item | SG60-50 |
Cylinder Dia | φ90 mm |
Output | 60 L/min |
Pressure | 5 Mpa(50bar) |
Piston stroke | 145 mm |
Piston Speed | 82 /min |
Inlet diameter | 75 mm |
Outlet diameter | 50 mm |
Max.Aggregate.size | 6 mm |
Cement : Sand | ≥1:3 |
Dimensions | 1400×650×920 mm |
Weight | 700 kg |
Power unit | 7.5 kW(Electric)/10hp(Diesel) |
Note: Single or Double Passageway.Skid or Tyre |
Features of mortar pump machine
1. Single piston single acting;
2. Switch by ball valve;
3. Mechanical transmission, lower failure rate;
4. Integrate pump head and hopper; prevent education and deposition together with the paddle agitating;
5. Compact structure, convenient for maintaining ;
Company Information
Our products are well known to international market such as Russia, Uzbekistan Russia, Uzbekistan, Cyprus, Algeria, Cameroon, Macedonia, Malaysia, Austrialia, Yemen, Oman etc.
Our company engaged an international expert guidance, the study has been made a number of patents.Our technical experts from the United States, Germany, Italy and other multi-national team of experts.
Our products have widely been applying in construction, railway and super highway engineering, underground engineering, tunneling, mining operation, hydropower projects and slope stabilization.
Service
We keep the service idea of "creat more value to customers", treating our customers with all our hearts, and meantime lawfully running it. Our customers distribute in over 120 countries in Asia, Europe, Middle east,Oceania and America. We apply our professional knowledge and full global service capability to ensure the best results for our customer's business
If you have interested in these machines, please don't hesitation to contact me.
