Product Details:
Payment & Shipping Terms:
|
| Flow Output: | 8 M3/h | Warranty: | 12 Months |
|---|---|---|---|
| Product Name: | Shotcrete Pump | Application: | Pump And Spraying Concrete |
| Condition: | New | Max Aggregate: | 25 Mm |
| Pressure: | 8 MPa | ||
| High Light: | wet mix shotcrete machine,wet shotcrete equipment |
||
Wet Shotcrete Pump:
Used for pump and spraying concrete.
When pump, 15-20 cubic meter per hour, is one small concrete pump.
Contact with air compressor, also can be used for spraying concrete.
The machine is suitable either for manual spraying or by means of a robotic arm.
We have 20 years produce expericence with advanced technology, rational structure, stable performance and long service life
shotcrete machine is widely used for concrete spraying operation in the tunnel, culvert, subway, hydroelectric works, underground works and high-methane laneway of coal mine.
| Model | Unit | SPB8I |
| Capacity | m3/h | 8 |
| Max. aggregate size | mm | 15 |
| Fineness modulus | / | ≥2.5 |
| Delivery pipe | mm | DN100/DN80 |
| Concrete slump | cm | 10~18 |
| Max. horizontally conveying dist. | m | 150 |
| Max. vertically conveying dist. | m | 80 |
| Main motor power | kw | 22 |
| Max. operating oil pressure | M pa | 19 |
| Max. output pressure | M pa | 8 |
| Feeding height | mm | 1100 |
| Dimensions (L×W×H) | mm | 2990×1200×1140 |
| Weight | kg | 1600 |
convey fine aggregate concrete and mortar for high buildings.
grout heat-insulated lightweight foamed cement, mortar floor heating, and self leveling for ground architecture.
spray plain concrete and fiber concrete in engineering construction.
convey and spray refractory and thermal insulation material.
spray afforestation soil in ecological environment construction.
pressure perfussion for foundation piles, back fill in over broken tunnels, railway slope supporting, and disaster management.

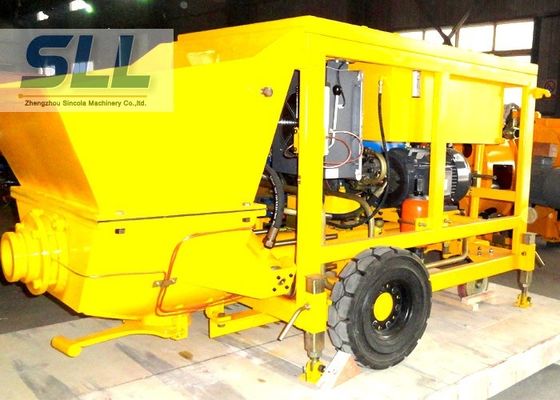

SPB Full Hydraulic Mini Shotcrete Pump Machine
high efficiency: full hydraulic pumping technical, reliable performance.
long spraying distance: 150m horizontally and 80m vertically.
continuously adjustable flux and accelerator adding volume.
low fitting consumption, long service life of wearing parts.
flexible movement, convenient operation and maintenance.
