Product Details:
Payment & Shipping Terms:
|
| Name: | Manual Grout Pump | Application: | Construction Engineering,Grouting Pump |
|---|---|---|---|
| Type: | Grout Pump | Output: | 0-8L/min |
| Weight: | 40kg | Condition: | New |
| High Light: | concrete grout pump,grout pumping equipment |
||
Description

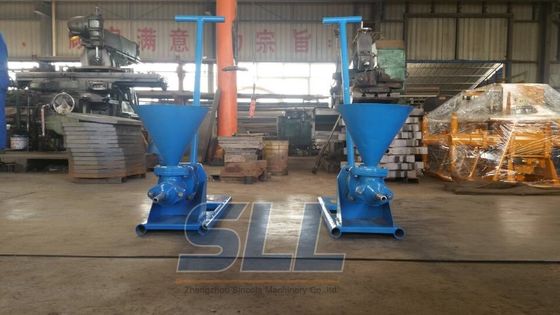

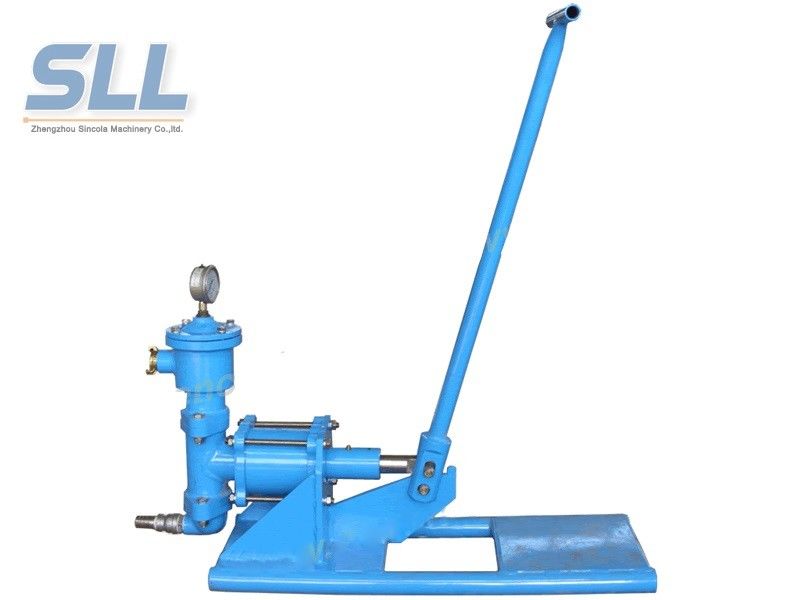

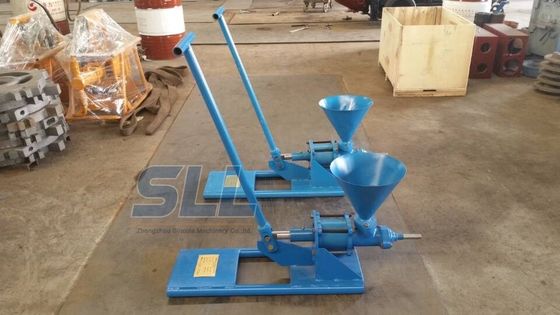

SB10 hand operated grouting pump is a small piston pump. It is mainly used in grouting cement slurry or the similar slurry by hand. It has simple operation and controllable flow.
This machine has two types---standard one and special one. The special one is equipped with a hopper.
Manual grout the cement slurry or similar slurry for the crack repair of the bridge engineering, house construction, etc.
Feature
1. Single cylinder working and ball valve direct changing, repair and maintain easily.
2. Small volume and light weight, convenient for moving.
3. Manual grouting, flow controllable.
Technology parameter
| Item | SG70 | SG100 |
| Rated Output | 0-70 L/Min | 0-100 L/Min |
| Rated Pressure | 10MPa(1450PSI) | 10MPa(1450PSI) |
| Cylinder Dia. | 110mm | 110mm |
| Stroke/Minute | 31 | 45 |
| Inlet Dia. | 38mm | 38mm |
| Outlet Dia. | 32mm | 32mm |
| Power Unit | 7.5kW | 11kW |
| Transmission | Hydraulic drive | Hydraulic drive |
| Chassis | Skid | Skid |
| Weight | 450Kg | 580Kg |
| Overall Dimension | 1505x770x1110mm | 1505x770x1110mm |
Service
We keep the service idea of "creat more value to customers" , treating our customers with all our hearts, and meantime lawfully running it. Our customers distribute in over 120 countries in Asia, Europe, Middle east,Oceania and America. We apply our professional knowledge and full global service capability to ensure the best results for our customer's business...
