Product Details:
Payment & Shipping Terms:
|
Name: | Dry Shotcrete Machine | Air Consumption: | 7-8m3/min |
---|---|---|---|
Max Aggregate Size: | 15mm | Power(w): | 5.5kw |
Application: | Spraying Concrete/ Gunite Concrete | Type: | Dry Shotcrete Gunite Machine |
Capacity: | 5 M3/h | Hose Diameter: | 50mm |
High Light: | cement spray machine,concrete cement sprayer |

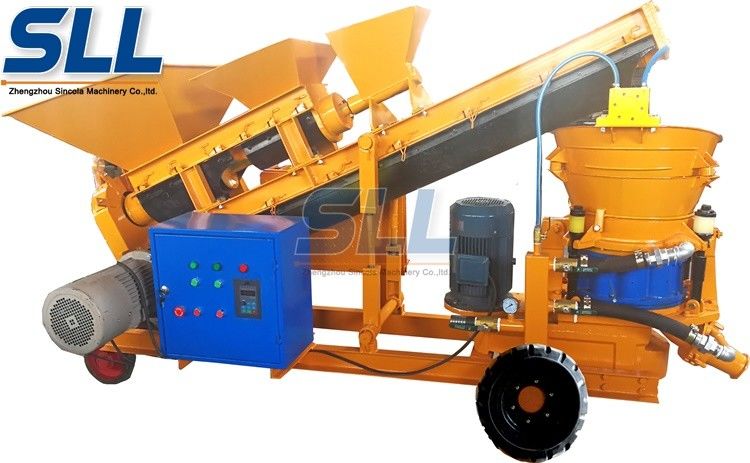

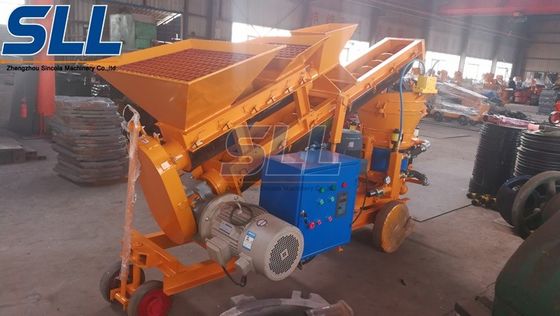

Description
Concrete spraying machine can be used for dry or damp mix spraying in the work site, it is to provide efficient and convenient operating performance, instead of artificial wall plastering,solve the raw material waste when working.
Parameter
Model | SPZ-5 |
Output | 5m3/h |
Max.conv.dist | 200m |
Water cement ratio | <0.35 |
Max.Aggregate.size | 15mm |
Hose inner size | 50mm |
Operating air pressure | 0.2-0.6MPa |
Air comsumption | 7-8m3/min |
Motor power | 5.5kw |
Voltage | 380v |
Basic chassis | Skid |
Feature
1. High working pressure, stable flow, can deliver mortar with higher sand content.
2. It adopts screw delivery, the flow is uniformity.
3. It adopts mechanical transmission, the structure is simple and compact, the wearing parts are cheap and easy to be replaced.
4.Thin flow conveying method with vortex flow, so the spraying flow is even, continuous and steady, to improve the shotcrete quality
5. It is small in size, convenient to move, especially suitable to working in narrow space.
Packaging and delivery
1. Wooden case and iron construction packing;
2. As per your requirements.
Shipping
1. professional goods shipping forwader;
2. port: Shanghai, Qingdao, Dalian, Ningbo.
Delivery
within 3-5 days after receiving the payment.
