Product Details:
Payment & Shipping Terms:
|
| Pressure: | Low Pressure, High Pressure, 0.8-1.0mpa | Usage: | Water, Sewage, Industrial, Chemical, Oil |
|---|---|---|---|
| Fuel: | Diesel, Electric, Customized | Flow Rate: | 0.00067-570mL/min,2.5L/Minute,Max 3450ml/min,16~30m3/hour Or Customized,6L/min |
| Warranty: | One Year | Product Name: | Squeeze Hose Peristaltic Pump |
| Capacity: | 0.3-50m3/h,60~42000 L/h | Material: | Stainless Steel 304,aatural Rubber Hose |
| High Light: | squeeze mortar pump,peristaltic concrete pump |
||
1. No valve operation, no back flow, stable pumping flow, low fault rate.
2. Free exchange of suction inlet and discharge outlet. When the pump is blocked, reversing pump can discharge the obstruction.
3. High vacuum, strong self-suction capacity.
4. Convenient maintenance, less wearable parts (except extruded hose).

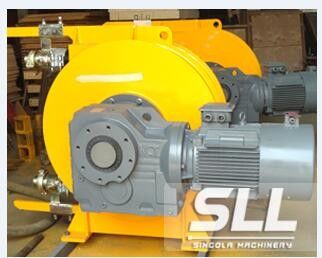

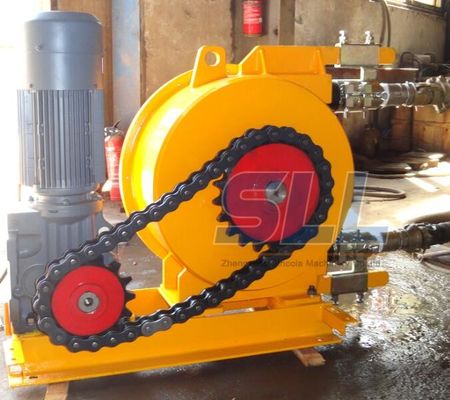

| Model | SH25 Hose Squeeze Pump |
| Output | 800~1300 L/h |
| Rated pressure | 1.5 MPa |
| Rev. | 50~80 r/min |
| Hose length | 900 mm |
| Max. particle dia. | 3 mm |
| Max. suction dist. | 3 m |
| Motor power | 1.1/ 1.5 KW |
| Reducer type | Gear reducer |
1. Architecture: mortar,plaster,cement paste,soil slurry,silt slurry,lime slurry,foamed concrete, architectural coating, refractory,accelerator,ooze,waste water,sewage and so on.
2. Chemical: corrosive,acid,alkali,phosphate liquid,inorganic materials,crystalline liquid,suspending liquid,emulsion,resin,electroplate liquid,electrolyte solution,precipitate.
3. Agriculture: phosphate fertilizer,compound fertilizers,thick slurry, precipitated sludge.
4. Mining: gold pulp,tailings,thick pulp,filling materials,underground drainage,adsorbent,slurry, mortar...
5. Paper industry: paper pulp, liquid sulfur.
6. Food and Beverage: oil, brew, milk, confiture, salad, syrup, chocolate.
7. Oil industry: drilling fluid,crude oil.
8. Cosmetics industry: toothpaste, emulsion, hair conditioner, face cream, facial oil.
9. Ceramic industry: ceramic germ plasma, slip glaze, glaze materials.
10. Others: pharmaceutical liquid,radioactive liquid,textile auxiliary,adhesion agent,glue,latex.
Application:
Mining well project, hydropower engineering, highway (railway) tunnel, subway engineering, bridge and slope maintenance, air-raid shelter construction, municipal construction, environmental greening project, blast-furnace refractories spraying, etc.
Company Introduction
Sincola has been engaged in the research and production of hose pump for many years. With the experiences and special technology SINCOLA won a quick development on the hose pump int the recent years.
Today SINCOLA hose pumps are the very mature products wiwth different kinds of types. The work pressure can reach 1.5Mpa and the output can be 40 cubic meters/hour. SINCOLA pumps are widely applied at home and abroad. Based on the excellent work principle, SINCOLA hose pumps will have a more extensive application in the next days.
If you need more informations, please contact with me.
