Product Details:
Payment & Shipping Terms:
|
| Condition: | New | After-sales Service Provided: | Video Technical Support |
|---|---|---|---|
| Product Name: | Concrete Pump | Application: | Concrete Transfer |
| Max Aggregate Size: | 30mm | Concrete Pump: | Pumping Concrete Machine |
| High Light: | high pressure concrete pump,hydraulic concrete mixer |
||
Introduction

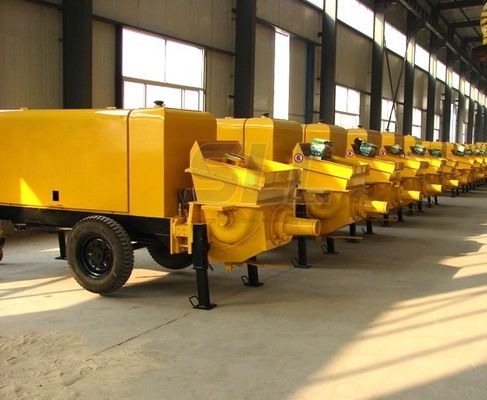

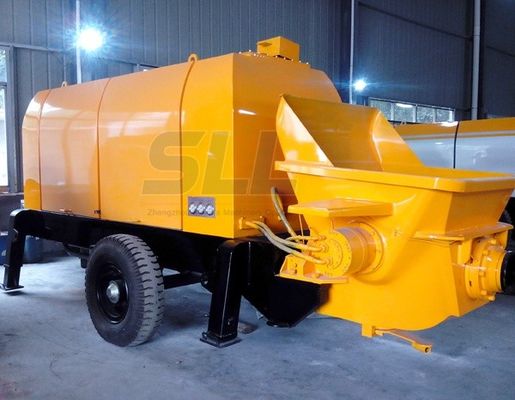

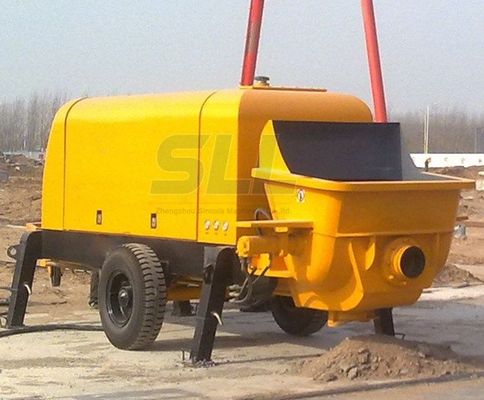

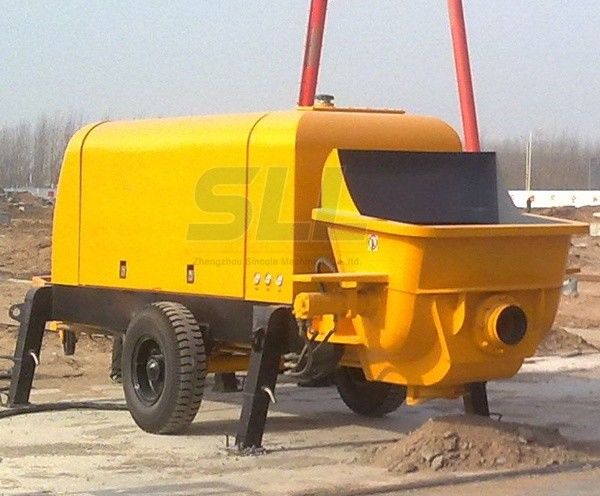

Portable concrete pump is an new type of fine stone pump which combines the domestic and foreign advanced technology. It is widely used in construction mortar transmission, geotechnical engineering grouting, large area coverage etc. It has many advantages, such as no pulse, high pressure, large flow, high efficiency production and easy to operate etc.
1. Truck-mounted concrete stationary pump easy to use, and construction of efficient and convenient.
2. The transport distance, can meet the housing construction projects, such as construction.
3. Adopts famous brand engine, powerful, long service life, the hydraulic system adopts imported original, excellent performance, to provide products with high reliability.
4. High wear-resistant alloy material glass plate, cutting ring and piston in the concrete, much longer consumable replacement cycle.
Parameter
| Diesel Engine mini concerete pump | |
| Specifications | SHBT90 |
| Conveying capacity(low pressure) | 90m³/h |
| Conveying capacity(high pressure) | 61m³/h |
| Conveying pressure(low pressure) | 8Mpa |
| Conveying pressure(high pressure) | 11.8Mpa |
| Hydraulic system pressure | 32Mpa |
| Switch of high and low pressure | auto |
| Fuel tank capacity | 190ml |
| Power | 140KW |
| Rotary Speed | 2200 r/min |
| Hopper Volume | 0.6 m³ |
| Hydraulic Oil tank volume | 600 L |
| Conveying distance | (φ125)m |
| Horizantl/Vertical | 860/200 |
| Diameter of Cylinder without bore | 125 mm |
| Diameter of Cylinder bore | 80 mm |
| Diameter of Concrete cylinder | 230 mm |
| Cylinder push distance | 1600 mm |
Features of fine stone concrete pump
1, With the characteristic of large capacity, high pressure, saving time material, and easy to move It has become one of the most reliable mortar pump transmission equipment.
2, It not only can dual fluid grouting, but also can single liquid grouting
3,The fine stone concrete pump also be used with double hore, at the same time, can be used as grouting clear water pumps, sewage pumps, mud pump etc. It is widely used in tunnel digging ,maintenance road and bridge dam mine construction of high-rise building foundation and all kinds of injection constructions.
4, Construction and public works projects: different mud and earth types, plaster, chemical slime, sludge, wall clay, earth and sand, sewage, clay, bentonite, pouring spray-application materials used for water repellence, spray-application tunnel shielding jobs, grout pouring, etc.
5, The fine stone concrete pump with advanced technology, stable performance, reliable, the operation is simple, is the present domestic reliable quality of a kind of conveying grouting equipment.
