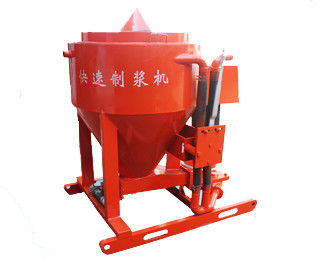

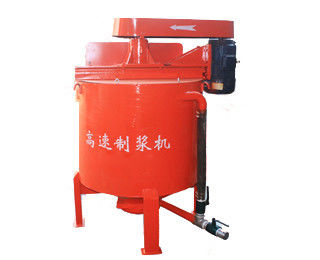

Long Life Building Construction High Pressure Grouting Machine 700L Capacity

Single Layer Grout Mixer Machine Longlife Building Construction Tool And Equipment

Product Description

1. The ash, sand and other materials contained in the mixer shall have a maximum particle size of not more than 5 mm and shall not be mixed with stones and other sundries (such as nails, vegetation, etc.).

2. Mixer slurry ratio: according to the mortar pump slurry requirements material selection and configuration.

3. The consistency of the slurry stirred by the mixer is in accordance with the requirements of the mortar pump.

SM150-200/SM250-700 Grout Mixer Technical Parameters

Feathers of grout mixer machine

1. High grout making speed, high efficiency, large volume, suitable for all kinds of grouting projects.

2. The machine adopts turbo pump to make grout, and high-speed centrifugal mixer to ensure uniform mixing and no precipitation.

3. The motor adopts vertical installation with well sealing effect and low failure rate.

4. Simple structure, no wearing parts, easy maintenance.

Grout Mixer Application:

1. The machine is mainly used to make cement grout.

2. It can be equipped with grout pump and used for tunnel excavation and maintenance, mining well engineering, dam construction, foundation treatment of big bridges and high building, and pressure grouting of all kinds of underground constructions.

Operation of Grout Mixer Machine

Close the valve. Add the water into the grout-making tank and start the tank. The water should flow violently, then, add the cement in a certain ratio. Cement and water is compounded quickly. Stop the motor until the grout is compounded well (about 3 minutes).

1. After the grout is compounded well, start the store tank.Turn the valve handle to open the valve, the grout is discharged into the store tank. After discharging, close the valve.
2. Open the discharge valve of the store tank and start the grouting pump to do the grouting work.
3. Repeat 1 and 2.
4. Clean the grout-making tank and store tank in time after the work finish

Warranty period

1. Quality warranty period 12 months refers to the working time whichever occurs carlicr.

2. Working time means the accumulative working time of the facility after delivered from factory. Using time means the period dated from the day customers purchases the facility.

3. If the timer of the facility fails or using time and displayed working time are not consistent.

4. Warranty period will not be affected by the changes of users, or facility stop caused by any reasons.

5. Warranty period of new parts replaced during quality warranty services are the same with the facility, calculated by facility working time and using time, and will end with the warranty period of the facility.

Company Profile

Having many years foreign trade experience, Zhengzhou Sincola Machinery Co.,Ltd has grown into an excellent Grout Mixer manufacturer manufacturer and exporter.
Number of Employees: 50-100
Main Markets:
Asia(Saudi Arabia, Kuwait, UAE, Lebanon, Singapore etc) African (South Africa Nigeria, Sudan etc), Europe(Belgium Romania, Switzerland, Macedonia etc) Australia
Export Percentage: 30% - 50%
Product:
Plaster machine
Shotcrete machine
Shotcrete pump
Concrete pump
Mortar pump
Spraying machine
Industrial hose pump equipment
Automatic rendering machine

If you need these machines, please don't hesitate to contact me.
