Product Details:
Payment & Shipping Terms:
|
| Product Name: | Grout Mixer Machine | Color: | Blue, As Your Request |
|---|---|---|---|
| Capacity: | 150L, 250L, 700L | Motor Power: | 5.5kw |
| Speed Of Mixing Drum: | 14r/min | Warranty: | 1 Year |
| Application: | Construction Industry,bridge,Construction Site | Weight: | 5500 Kg |
| High Light: | grouting pump machine,high pressure grouting machine |
||

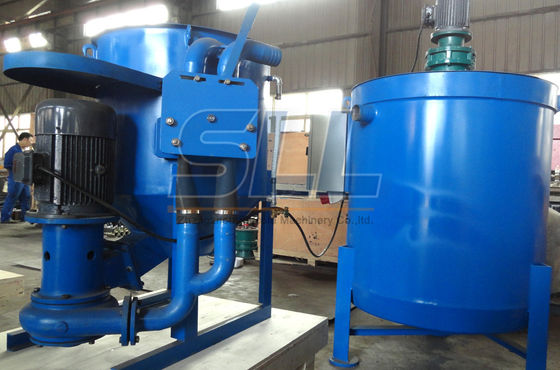

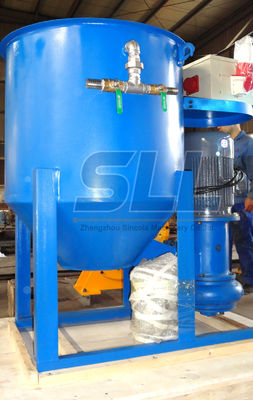

Large Volume Grout Mixer Machine High Grout Making Speed With Grout Pump
Introduction of industrial cement mixer
Grout Mixer Machine for sale is used to mix cement and water evenly, then pour into grouting pump,in order to doing the grouting work efficiently. when working, water and cement according certain ratio is added into the grout-making tank, then, the materials work in the high speed continuous flow to be compounded equably under the action of the grout-making pump. The compounded grout is discharged into the store tank through the valve, in which there are two pieces of paddle can prevent from depositing and eduction.
Technical Parameters
| Items | KGJ400 | KGJ600 | KGJ900 | KGJ150-320 | KGJ250-700 | KMJ900 | KMJ900A |
| Mixing barrel volume | 400L | 600L | 900L | 150 L | 250 L | 900 | 900 |
| Storage barrel volume | 320 L | 700 L | |||||
| Mixer speed | 960r/min | 960r/min | 960r/min | 1440 r/min | 1440 r/min | 50r/min | 50r/min |
| Agitator speed | 33 r/min | 33 r/min | |||||
| Mixer motor | 4kW | 5.5kW | 5.5/7.5kW | 3kw | 5.5 kW | 3kW | 3kW |
| Agitator motor | 1.5kw | 1.5 kW | |||||
| Suitable material | Cement or other materials suitable for high speed mixing | Cement | Cement, mortar | ||||
1. High grout making speed, high efficiency, large volume, suitable for all kinds of grouting projects.
2. The machine adopts turbo pump to make grout, and high-speed centrifugal mixer to ensure uniform mixing and no precipitation.
3. The motor adopts vertical installation with well sealing effect and low failure rate.
4. Simple structure, no wearing parts, easy maintenance.
1. The machine is mainly used to make cement grout.
2. It can be equipped with grout pump and used for tunnel excavation and maintenance, mining well engineering, dam construction, foundation treatment of big bridges and high building, and pressure grouting of all kinds of underground constructions.
Operation of industrial cement mixer
Close the valve. Add the water into the grout-making tank and start the tank. The water should flow violently, then,add the cement in a certain ratio. Cement and water is compounded quickly. Stop the motor until the grout is compounded well (about 3 minutes).
After the grout is compounded well, start the store tank.Turn the valve handle to open the valve, the grout is discharged into the store tank. After discharging, close the valve.
Open the discharge valve of the store tank and start the grouting pump to do the grouting work.
Repeat 1 and 2.
Clean the grout-making tank and store tank in time after the work finish.
