Product Details:
Payment & Shipping Terms:
|
| Product Name: | Electric Concrete Mixer With Pump | Keywords: | Small Diesel Concrete Mixer |
|---|---|---|---|
| Application: | Concrete Mixer Pump | Charging Capacity: | 30 M3/h |
| Mixing Power: | 5.5kw | Warranty: | 1 Year |
| High Light: | concrete mixer pump,hydraulic concrete mixer |
||
Description
1. New combination of concrete pump and concrete mixer.
2. Double cylinder hydraulic pumping system, hydraulic system greatly enhance the stirring.
3. Concrete pump overall reliability ensure pump strive foolproof work under harsh conditions
4. The pump construction operation system used in all automated, all material mixing, high pressure pumping.

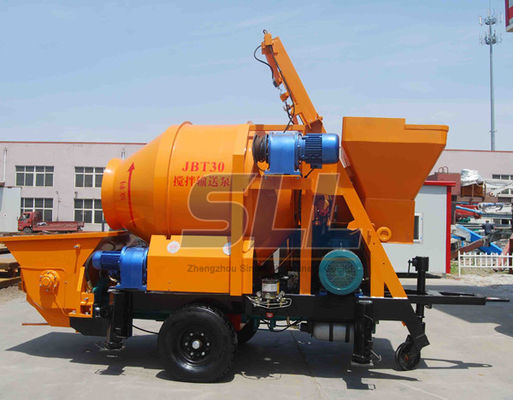

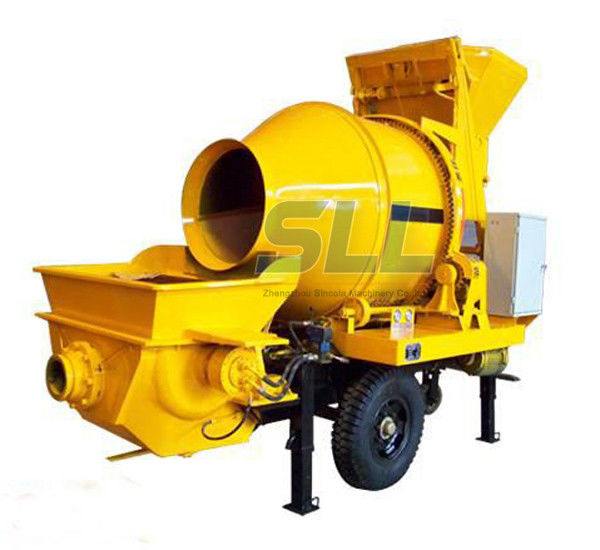

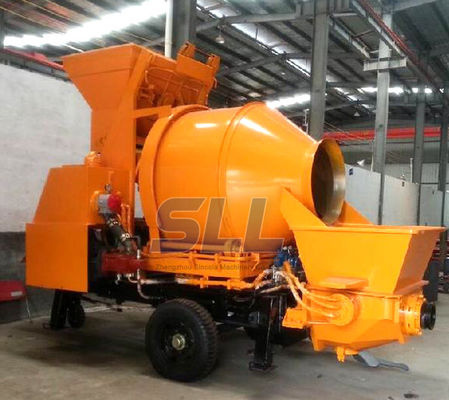

1. JBT Small Concrete Mixer Pump.
2. JBT Mini Concrete Mixer Pump combines concrete mixer and concrete pump as one new concrete pumping machine with concrete mixer.
3. Concrete mixer is driven by two mixing motor and grinding wheel rotation, with uniform mixing, thorough discharging and stable performance.
4. Concrete pump has double cylinder hydraulic pump system with reliable performance.
5. Concrete Mixer Pump spare parts are from high quality products of famous brand.
6. The pump could be electric motor or diesel engine.
Parameter
| Model | JBT30S-13 |
| Mixing Capacity(m3/h) | 15 |
| Pumping Capacity(m3/h) | 30 |
| Mixing Power(kw) | 8 |
| Winding Motor Power | 4.5KW |
| Pumping Motor Power | 37KW |
| Max. Size of Aggregates (mm) | Rubble 40 pebble 30 |
| Hopper capacity x Discharge Height (mm) | 600x1070 |
| Distribution Value | S Valve |
| Cleaning Method | Water Cleaning |
| Overall Dimensions L×B×H (mm) | 5112×2091×3514 |
| Weigh (kg) | 4800 |
Features
1. compact structure, flexible movement, easy operation and simple maintenance.
2. remote control with high automatic degree and easy operation, saving labor cost.
3. independent mixing system with even mixing performance and high working efficiency.
4. double cylinder hydraulic pump system with high pumping speed and high working efficiency.
5. Advanced S-tube distribution valve, well sealing techinc, good sealing performance.
6. Centralized lubrication system, low consumption of equipment parts, less maintenance cost.
7. Equipped with wired remote controller, easy to operate.
8. PLC system to ensure best control performance.
