Product Details:
Payment & Shipping Terms:
|
| Product Name: | Small Portable Concrete Pump | Application: | Concrete Transfer |
|---|---|---|---|
| Max Aggregate Size: | 30mm | Concrete Pump: | Pumping Concrete Machine |
| Feature: | Secondary Constructional Column Pump | Warranty: | 1 Year |
| High Light: | concrete mixer pump,high pressure concrete pump |
||
Description
The S-valve series of high-pressure concrete pumps, Z-valve series of medlum-pressure pumps and D-valve series of low-pressure pumps are concrete transport machines widely used for the construction works in city construction, bridge construction, electric power and other energy source facilies and so on.

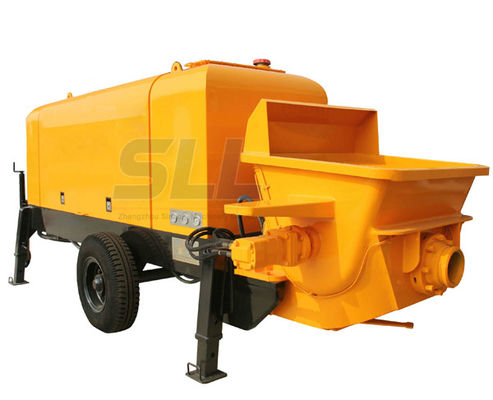

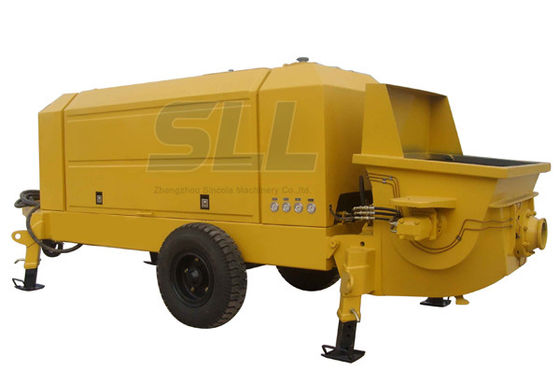

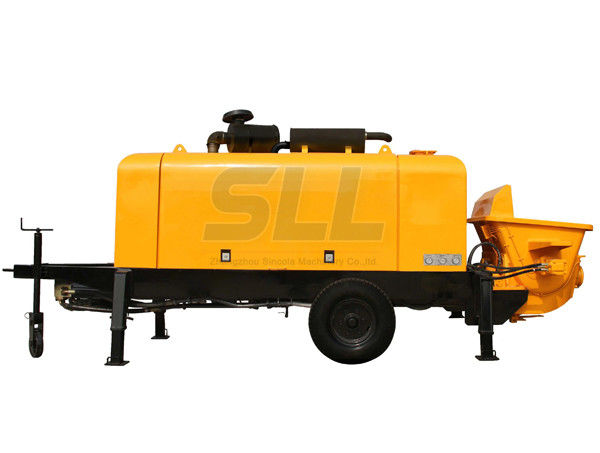

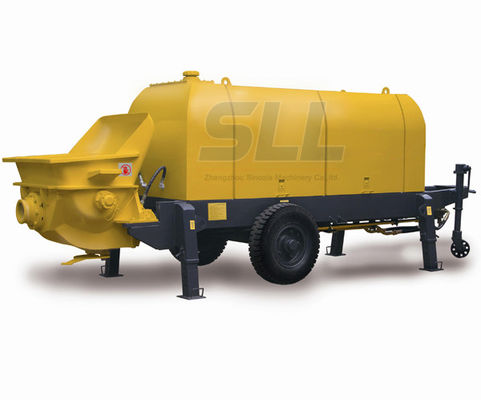

The trailer concrete pump is with the capacity from 15-90 CBM with which electric and diesel both type. The diesel type is usually equipped with DEUTZ high-performance engine, which with a stable performance.
Parameter
| Diesel Engine mini concerete pump | |
| Specifications | SHBT90 |
| Conveying capacity(low pressure) | 90m³/h |
| Conveying capacity(high pressure) | 61m³/h |
| Conveying pressure(low pressure) | 8Mpa |
| Conveying pressure(high pressure) | 11.8Mpa |
| Hydraulic system pressure | 32Mpa |
| Switch of high and low pressure | auto |
| Fuel tank capacity | 190ml |
| Power | 140KW |
| Rotary Speed | 2200 r/min |
| Hopper Volume | 0.6 m³ |
| Hydraulic Oil tank volume | 600 L |
| Conveying distance | (φ125)m |
| Horizantl/Vertical | 860/200 |
| Diameter of Cylinder without bore | 125 mm |
| Diameter of Cylinder bore | 80 mm |
| Diameter of Concrete cylinder | 230 mm |
| Cylinder push distance | 1600 mm |
Feature
1. Compact structure, easily moved, highly movable and flexible
2. Intelligent power control system with PLC for safe, smooth and efficient operation
3. Plunger pump with constant power, ensuring the efficiency of main engine
4. Equipped with wire remote controller easy to operate
5. High performance sealing of S pipe valve installed with floating wear resistant
6. High delivery pressure to meet demand of high building and long distance projects
7. Low cost maintenance, beautiful appearances
