Name: | Cement Grout Pump | Application: | Slurry Mud Pump |
---|---|---|---|
Power Type: | Electric | Type: | Slurry Grouting Pump |
Press: | 0-10Mpa | ||
High Light: | cement injection grouting pump,grout pumping equipment |

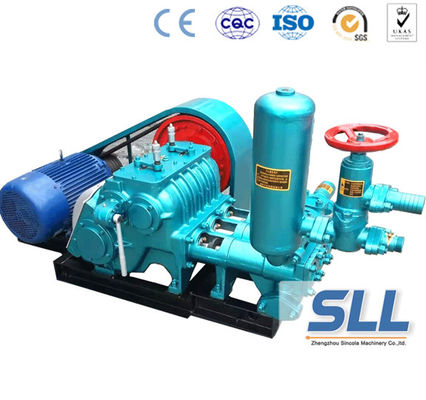

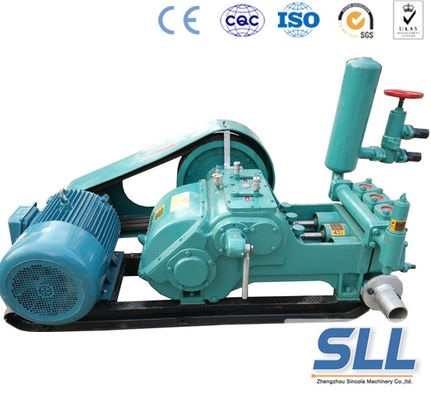

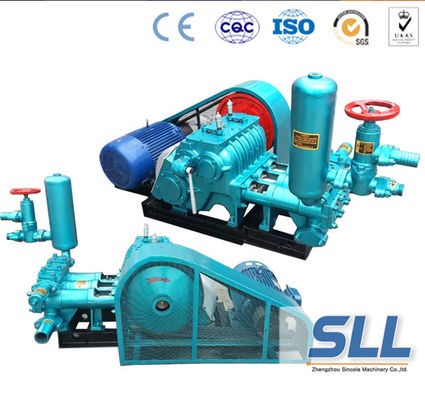

Three cylinder cement grouting pump, it is verticle slurry pump.
1. SBW series slurry pump is widely used for grouting and mud jacking in engineering construction.
2. SBW250 slurry pump have two cylinders with different diameters and four gear shifts.Output and drilling depth are adjustable,so it can be used to grout cement slurry or equipped with 1500m drilling machine.
3. verticle slurry pump, is widely used in railway, hydraulic engineering, metallurgical engineering, building construction, geological exploration, engineering exploration.
Technology parameter
Model | Pump speed (r/min) |
Output (L/min) |
Pressure (Mpa) |
Input speed (r/min) |
Inlet pipe ID (mm) |
Outlet pipe ID (mm) |
Motor power (KW) |
Dimension (mm) |
Weight (kg) |
SBW150 | 222 | 150 | 1.8 | 580 | 51 | 25-32 | 7.5 | 1155*795*995 | 500 |
130 | 90 | 3.2 | |||||||
86 | 58 | 4.8 | |||||||
57 | 38 | 7 | |||||||
183 | 125 | 2.3 | |||||||
107 | 72 | 4 | |||||||
71 | 47 | 6 | |||||||
47 | 32 | 7 | |||||||
SBW160 | 200 | 160 | 2.5 | 610 | 51 | 32 | 11 | 1100*995*650 | 700 |
132 | 107 | 4 | |||||||
83 | 67 | 6.5 | |||||||
55 | 44 | 10 | |||||||
SBW250 | 200 | 250 | 2.5 | 500 | 76 | 51 | 15 | 1100*995*650 | 760 |
116 | 145 | 4.5 | |||||||
72 | 90 | 6 | |||||||
42 | 42 | 6 | |||||||
SBW320 | 214 | 320 | 4.0 | 500 | 76 | 51 | 30 | 1280*855*750 | 600 |
153 | 230 | 5.0 | |||||||
109 | 165 | 6.0 | |||||||
78 | 118 | 8.0 |
Productd Details
1. A horizontal, triplex, single acting reciprocation piston pump. The pump can choose diesel motor power, It has simple operation, convenient, can achieve close range or remote control.
2. This pump is a compact structure, smooth operation, high output pressure, longer life expectancy, stable performance, good general and so on.
3. This pump adopts the car transmission,Can get six different discharge and pressure,Reasonable configuration parameters selection,The construction technology can satisfy different requirements.
4. Mainly used drilling fluid in supply for 2000m about core drilling coal field geology,metallurgy geology,hydrogeololgy,drilling fluid can use mud and water, the coal water etc.
