Product Details:
Payment & Shipping Terms:
|
Name: | Sand Cement Silo | Capacity: | 100ton |
---|---|---|---|
Application: | Sand, Cenet, Mortar Powder | Feature: | Big Capacity |
Charging Way: | Bucket Elevator | Area: | 86m2 |
High Light: | vertical cement silo,cement steel silo |
General description

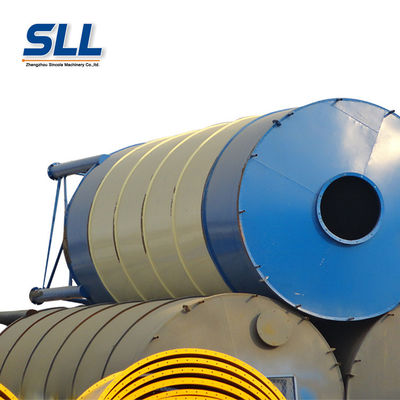

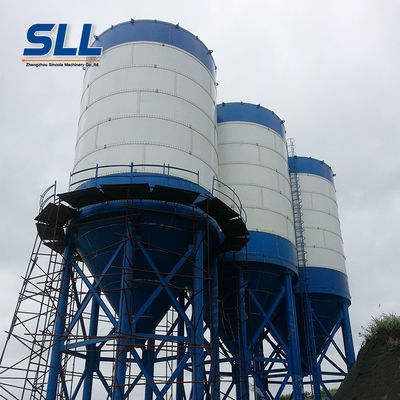

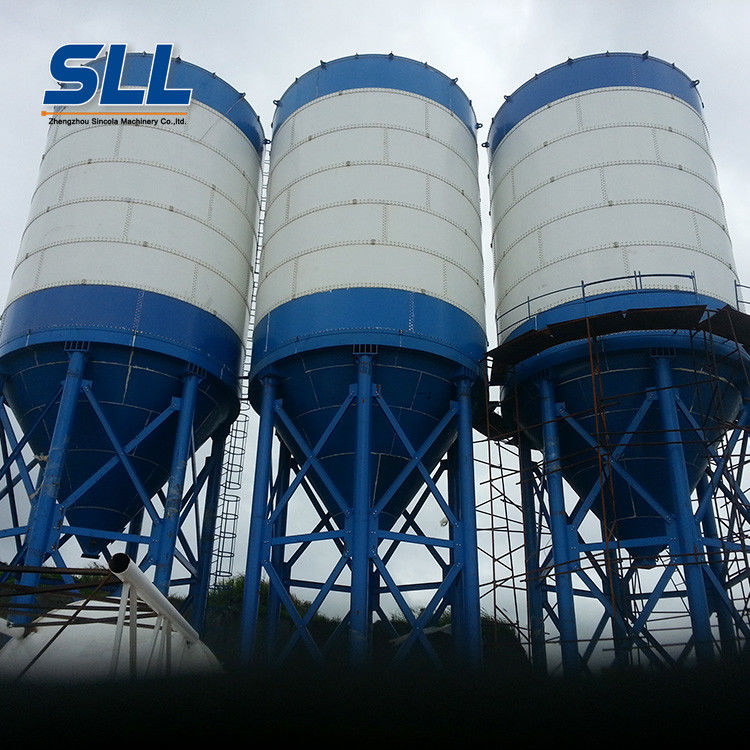

Piece assembly silo is also called bolted type silo or sectional silo. It's used for storing all kinds of powder and aggregate, such as cement, lime, calcium carbonate powder, gypsum, sand, slag and others.
we delivery silo parts by container, the silo can be assembled on customer's site, when one project is finished, it can be disassembled and assembled at another site. It can save customer's time and cost.
It's suitable for cement, lime, slag and other materials. The silo volume is 50-2000T.
Model | Tanker Diameter | Tanker Total Height | Matched screw conveyor |
20Ton | 2.2m | 5.7m | LSY163 |
30Ton | 2.4m | 7m | LSY163 |
40Ton | 2.6m | 7.6m | LSY163 |
50Ton | 3m | 7.6m | LSY180 |
80Ton | 3m | 11m | LSY180 |
100Ton | 3m | 12.5m | LSY230 |
150Ton | 3m | 16.5m | LSY230 |
200Ton | 4.5m | 19m | LSY230 |
300Ton | 5.5m | 21.3m | LSY230 |
Advantages of Sand Cement Silo

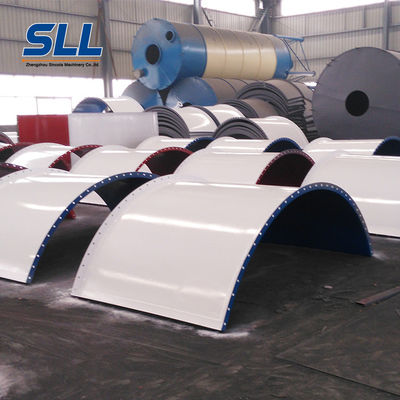

For easy transportation and to save the ocean freight, we design the walls of cement silo into pieces. The pieces only take small space and they are very easy to be assembled together at the construction site.It is also very easy for the later repair or replacement of any corrosion.
