Product Details:
Payment & Shipping Terms:
|
| Production Name: | Cement Grouting Pump | Feature: | High Pressure Grouting Pump |
|---|---|---|---|
| Power Type: | Electric | Application: | Grouting Pump |
| Type: | Slurry Grouting Pump | Output: | 90L/min |
| Power(w): | 55kw | Warranty: | 1 Year |
| High Light: | concrete grout pump,cement injection grouting pump |
||
Description

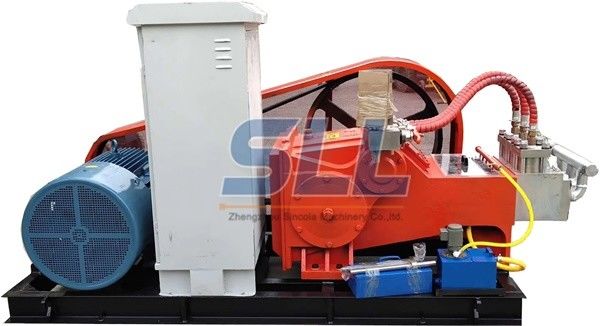

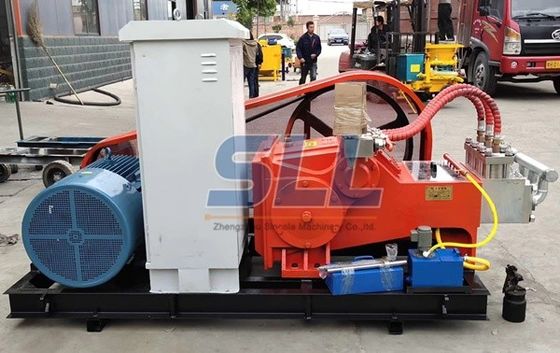

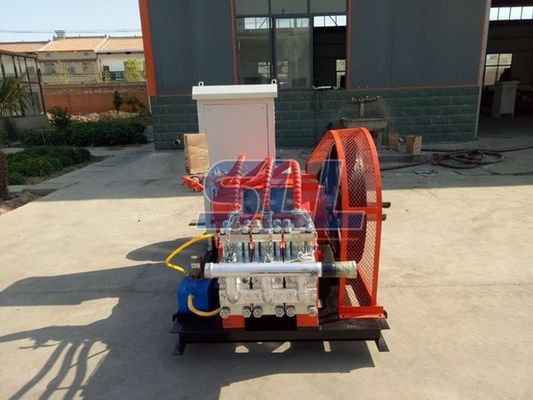

This cement grouting pump is designed according to the market demand of high-pressure grouting pump. This product combined split type pump hydraulic end, motivation to use needle bearing type transmission, low noise, low temperature, ensure 24 hours of continuous operation, suitable for foundation treatment of high-pressure rotary jet grouting, curtain grouting, soil retaining cofferdam anchorage, mine well plugging, the barrel wall, slope and other fields.
High pressure grouting pump can be used in the following areas
○ Soft foundation treatment, high pressure rotary jet grouting;
○ High-pressure water jet assists in breaking rock and falling coal;
○ Coal mine underground hydraulic props supply liquid;
○ Anchoring hydraulic expansion metal paving rod to pump high pressure water;
○ Underground large pipeline dredging cleaning;
○ Chemical pump;
○ High-pressure water jet, horizontally drilling through holes;
○ Pump for grouting for other purposes;
Main Technical Parameters
| No | Main Technical Parameters | Unit | |||
| Motor Power | 55KW | 90KW | |||
| 1 | Motor Model | GPH90-6 | GPH90-4 | / | |
| 2 | Form of Action | Horizontal reciprocating single acting plunger type | Horizontal reciprocating single acting plunger type | / | |
| 3 | Plungers Quantity | 3 | 3 | piece | |
| 4 | Plunger diameter | 50 | 50 | mm | |
| 5 | Work schedule | 100 | 100 | mm | |
| 6 | Input Rotating speed | 390～900 | 590～1330 | r/min | |
| 7 | Output | 32～75 | 50～110 | L/min | |
| 8 | Working Pressure | 36 | 40 | MPa | |
| 9 | Suction pipe diameter | 64 | 64 | mm | |
| 10 | Discharge pipe diameter | 25 | 25 | mm | |
| 11 | Dimensions | 2820×1270×1220 | 2820×1270×1220 | mm | |
| 12 | Total Weight | 3380 | 3450 | Kg | |
