High Pressure Concrete Grout Mixer Machine 150L 250L 700L Large Capacity

Good quality Wet Shotcrete Machine for sales
Good quality Wet Shotcrete Machine for sales
Your Shotcrete Machine really good quality and we appreciate your service!

—— Membou

I'm Online Chat Now

High Pressure Concrete Grout Mixer Machine 150L 250L 700L Large Capacity

China High Pressure Concrete Grout Mixer Machine 150L 250L 700L Large Capacity supplier
High Pressure Concrete Grout Mixer Machine 150L 250L 700L Large Capacity supplier High Pressure Concrete Grout Mixer Machine 150L 250L 700L Large Capacity supplier

Large Image :  High Pressure Concrete Grout Mixer Machine 150L 250L 700L Large Capacity

Product Details:

Place of Origin: Zhengzhou Henan China
Brand Name: SINCOLA
Certification: CE
Model Number: SM250-700

Payment & Shipping Terms:

Minimum Order Quantity: One Set
Price: Negotiable
Packaging Details: Standard Exported Wooden Case Package
Delivery Time: 10-15 working days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 100 sets per month
Detailed Product Description
Product Name: Grout Mixer Machine Color: Blue, As Your Request
Capacity: 150L, 250L, 700L Motor Power: 7.5kw
Speed Of Mixing Drum: 14r/min Warranty: 1 Year
Application: Construction Industry,bridge,Construction Site Weight: 5500 Kg
High Light:

mortar mixer machine

,

high pressure grouting machine

Zhengzhou Sincola Cement High Pressure Concrete Grout Mixer Machine

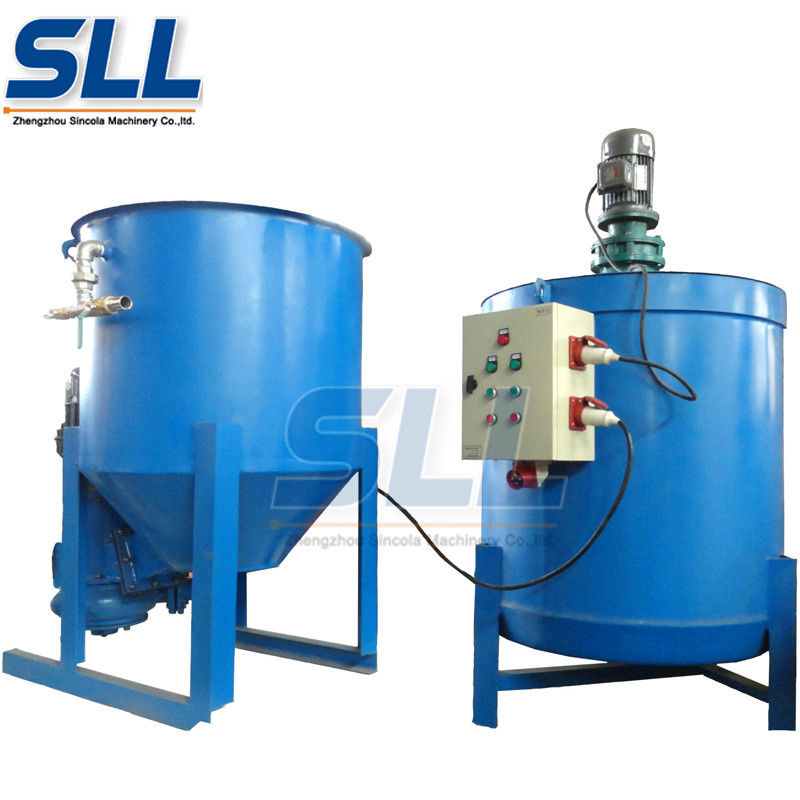

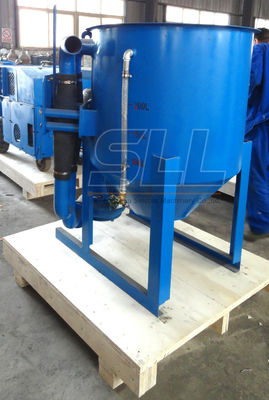

Introduction of Grout Mixer Machine



Grout Mixer Machine for sale is used to mix cement and water evenly, then pour into grouting pump,in order to doing the grouting work efficiently. when working, water and cement according certain ratio is added into the grout-making tank, then, the materials work in the high speed continuous flow to be compounded equably under the action of the grout-making pump. The compounded grout is discharged into the store tank through the valve, in which there are two pieces of paddle can prevent from depositing and eduction.



Technical Parameters



Items KGJ400 KGJ600 KGJ900 KGJ150-320 KGJ250-700 KMJ900 KMJ900A
Mixing barrel volume 400L 600L 900L 150 L 250 L 900 900
Storage barrel volume       320 L 700 L
Mixer speed 960r/min 960r/min 960r/min 1440 r/min 1440 r/min 50r/min 50r/min
Agitator speed       33 r/min 33 r/min
Mixer motor 4kW 5.5kW 5.5/7.5kW 3kw 5.5 kW 3kW 3kW
Agitator motor       1.5kw 1.5 kW
Suitable material Cement or other materials suitable for high speed mixing Cement Cement, mortar

Grout Mixer Machine Features:

1. High grout making speed, high efficiency, large volume, suitable for all kinds of grouting projects.

2. The machine adopts turbo pump to make grout, and high-speed centrifugal mixer to ensure uniform mixing and no precipitation.

3. The motor adopts vertical installation with well sealing effect and low failure rate.

4. Simple structure, no wearing parts, easy maintenance.

Grout Mixer Machine Application:

1. The machine is mainly used to make cement grout.

2. It can be equipped with grout pump and used for tunnel excavation and maintenance, mining well engineering, dam construction, foundation treatment of big bridges and high building, and pressure grouting of all kinds of underground constructions.



High Pressure Concrete Grout Mixer Machine 150L 250L 700L Large CapacityHigh Pressure Concrete Grout Mixer Machine 150L 250L 700L Large Capacity



Operation of Grout Mixer Machine
Close the valve. Add the water into the grout-making tank and start the tank. The water should flow violently, then,add the cement in a certain ratio. Cement and water is compounded quickly. Stop the motor until the grout is compounded well (about 3 minutes).
After the grout is compounded well, start the store tank.Turn the valve handle to open the valve, the grout is discharged into the store tank. After discharging, close the valve.
Open the discharge valve of the store tank and start the grouting pump to do the grouting work.
Repeat 1 and 2.
Clean the grout-making tank and store tank in time after the work finish.
