Product Details:
Payment & Shipping Terms:
|
Name: | Cement Storage Silo | Power Type: | Electrcial |
---|---|---|---|
Brand: | Sincola | Capacity: | 10-2000t |
Place Of Origin: | Henan, China | Warranty: | 1 Year |
Color: | Customized | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
Application: | Storage Cement | Storage Materials: | Cement Or Powder |
Condition: | New | Certification: | CE |
High Light: | vertical cement silo,cement steel silo |
Manufactured Technology of Cement Silo
The parts of the Cement silos are manufactured by special laser cutting and drilling technologies and they are implemented special surface cleaning procedure. The parts of the sand silos also are manufactured in sensitive production facilities with special equipment and they are painted with prime coating and final coating. The parts which are hung on automatic conveyor line , are painted in special painting cabinets.
Application
Professional cement Silo for Sale is mainly used in many areas, such as construction material, chemical engineering, energy resources, environmental protection and foodstuff, like loading and unloading plants, dosing-weighing and mixing plants, batching plant etc.
Accessories
Accessories together with silo, such as screw conveyor, arch breaker device, butterfly valve, relief valve, Supply silo storage bulk powder storage silos level indicator, dust filter etc.
Accessory attached | per unit |
Dust filter | 1 piece |
Level indicator | High and low, total 2 pieces |
Aeration pad | 1 piece |
Safe valve | 1piece |
Ladder | 1 set |
Butterfly valve | 1 piece |
Charge pipe | 1 set |
Support leg | 1 set |
Installation parts | 1 sets |
Parameter of SINCOLA
Item | 50t | 80t | 100t | 120t | 150t | 200t | 300t | |||||
Tank | Height (m) | 4.5 | 7.5 | 9 | 10.5 | 13.5 | 9 | 8.25 | ||||
Diameter (m) | 3 | 3 | 3 | 3 | 3 | 4.5 | 5.5 | |||||
Section quantity | 3 | 5 | 6 | 7 | 9 | 6 | 5.5 | |||||
Each section is divided into three pieces, the height of each section is 1.5 meters. |
||||||||||||
Top cover | Top cover is divided into two pieces | |||||||||||
Cone | Height (m) | 2.6 | 2.6 | 2.6 | 2.6 | 2.6 | 3.8 | 4.8 | ||||
Pieces | Cone is divided into 5 pieces | |||||||||||
Discharging | Discharging height (m) | ≥1.5 | ≥1.5 | ≥1.5 | ≥1.5 | ≥1.5 | ≥1.5 | ≥1.5 | ||||
Laining leg height (m) | 2-4.5 | 2-4.5 | 2-4.5 | 2-4.5 | 2-4.5 | 2-4.5 | 2-4.5 | |||||
Laining leg height is optional | ||||||||||||
Weight (kg) | 2.7 | 4.5 | 4.8 | 6.75 | 8.1 | 11.5 | 18 | |||||
Other parts | Arch breaker | Pneumatic arch breaker / Electric vibrator , 1 unit | ||||||||||
Pneumatic Valve | DN300 | |||||||||||
Dust collector | Dust collector / electric dust collector |

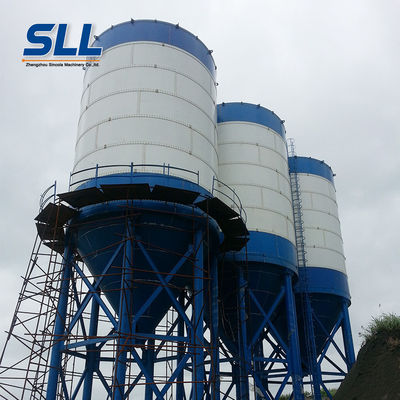

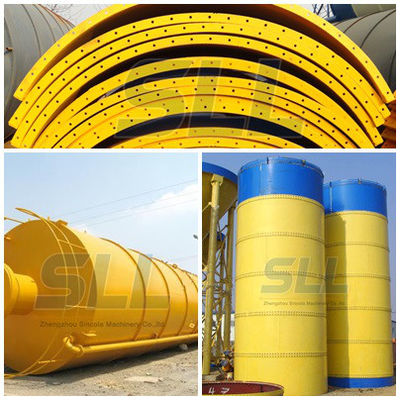

Details pictures
Packing Pictures
50ton 1*40HQ could contain 3 set
80ton 1*40HQ could contain 2 set
100ton 1*40HQ could contain 2 set
200ton 1*40HQ could contain 1 set
300ton 1*40HQ+1*20HQ could contain 1 set
Company information
Zhengzhou Sincola Machinery Co.,Ltd was founded in 1989. It is a modern engineering machinery enterprise with independent research and development, design, production, sales, and also with a perfect efficient after-sales service team. It has obvious characteristics and competitive advantage in the same industry line.
SINCOLA company independently designs and owns the intellectual property rights) "Bolted-type Cement Silo" which is widely used in building materials, chemical industry, energy, environmental protection, food and other industries. SINCOLA bolted-type silo has the advantages of ‘convenient transportation, quick installations, fast dismantle and short production period’, which has been already well received by the client home and abroad due to the good quality and good after-sales service. SINCOLA company now has already opened the foreign markets to lay a solid foundation for the future development of the company.
Be quiet for future and accumulate steadily. Because of the entire SINCOLA company employee’s efforts, ‘SINCOLA bolted-type silo’ has already become the well-known bolted silo brand in this industry, and gradually releases the brand value. As the company's most important product unit, SINCOLA will continue to work hard and do fine to make ‘SINCOLA bolted-type silo’ brand more well-known, stronger and bigger, and continue to provide good quality products and services for all the clients, so that SINCOLA Company will become the preferred supplier for the clients. At the same time, in order to meet the comprehensive needs of customers and continuous changes in the market, the company will extend the products development layout, which will develop the bulk transferring complete set equipments, welding silo, steel fabrication, concrete batching plant upgrading and transformation and maintenance service, and all other accessories etc. based on SINCOLA bolted silos.
The corporate culture will become the spiritual pillar of SINCOLA, and the company will do best effort to create good product to promote the transformation and upgrading of construction machinery industry!
Our service
We keep the service idea of "creat more value to customers" , treating our customers with all our hearts, and meantime lawfully running it. Our customers distribute in over 120 countries in Asia, Europe, Middle east,Oceania and America. We apply our professional knowledge and full global service capability to ensure the best results for our customer's business...
FAQ
Q1. What payment terms do you accept?
A1. We can accept
1. 30%T/T, 70%T/T after inspecting cargo in the factory before delivery.
2. 30%T/T, 70%T/T against B/L copy after delivery.
3. 30%T/T, 70% L/C.
Q2. How to see machine operating before buy it?
A2. We can supply
1. We can supply you our video link for the machine you want, you can watch machine operating on YuTube.
2. We alos welcome customers come to our factory to see machine in person. Maybe you can be our agent in your country.
