Product Details:
Payment & Shipping Terms:
|
| Condition: | New | After-sales Service Provided: | Video Technical Support |
|---|---|---|---|
| Product Name: | Concrete Pump | Application: | Concrete Transfer |
| Max Aggregate Size: | 30mm | Concrete Pump: | Pumping Concrete Machine |
| High Light: | concrete mixer pump,hydraulic concrete mixer |
||

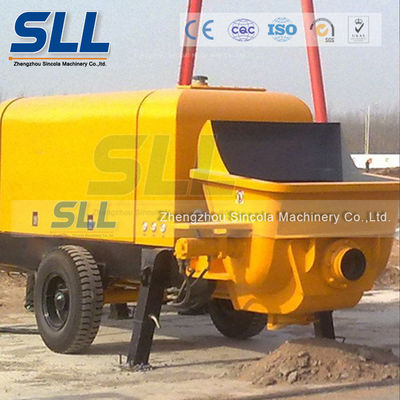

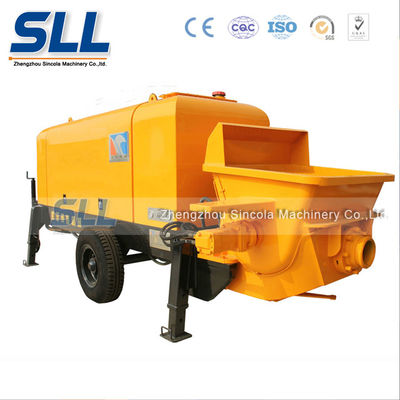

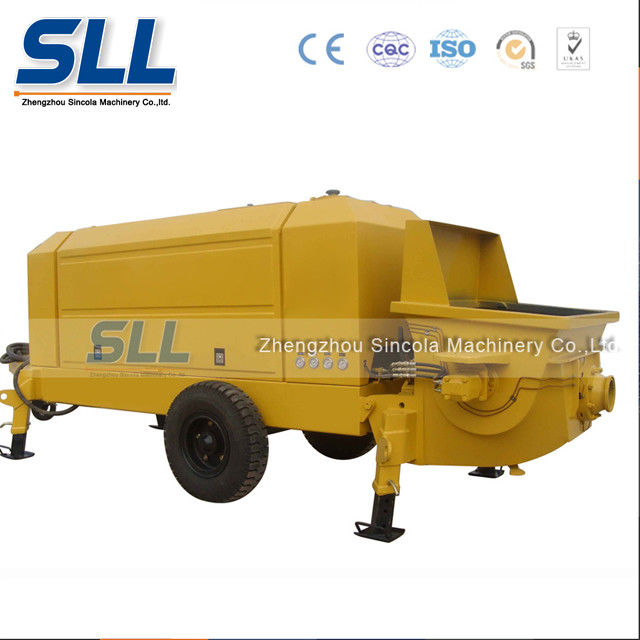

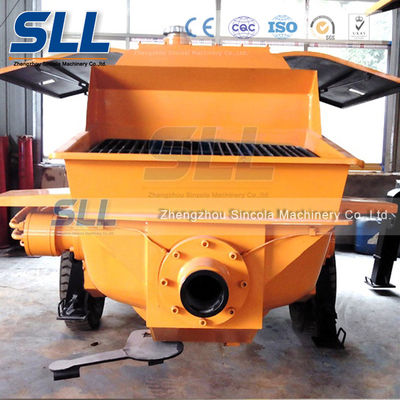

Because of the advanced technology of concrete pump and hose Concrete mixer pump in the world, Zhengzhou Sincola machinery company with the improved experience and product concept to meet the requirement of high efficiency and low consumption environmental friendly of modern construction. This concrete pump machine is composed of pump body and pipeline,and it use the pressure to convery the concrete continuously along the pipeline. The Concrete pump Concrete mixer pump trailer is widely used in urban construction, water conservancy, and tunnel construction,etc.
Application
This concrete pump is use to floor heating engineering fine stone concrete filling layer or mortar filling the large area, the high efficiency of construction, also can be used for construction projects, tunnel, mining and other engineering fine stone concrete or mortar transfers.
Parameter
| Diesel Engine mini concerete pump | |
| Specifications | SHBT90 |
| Conveying capacity(low pressure) | 90m³/h |
| Conveying capacity(high pressure) | 61m³/h |
| Conveying pressure(low pressure) | 8Mpa |
| Conveying pressure(high pressure) | 11.8Mpa |
| Hydraulic system pressure | 32Mpa |
| Switch of high and low pressure | auto |
| Fuel tank capacity | 190ml |
| Power | 140KW |
| Rotary Speed | 2200 r/min |
| Hopper Volume | 0.6 m³ |
| Hydraulic Oil tank volume | 600 L |
| Conveying distance | (φ125)m |
| Horizantl/Vertical | 860/200 |
| Diameter of Cylinder without bore | 125 mm |
| Diameter of Cylinder bore | 80 mm |
| Diameter of Concrete cylinder | 230 mm |
| Cylinder push distance | 1600 mm |
