Product Details:
Payment & Shipping Terms:
|
| Flow Output: | 15-20 M3/h | Warranty: | 12 Months |
|---|---|---|---|
| Product Name: | Robot Arm Shotcrete Machine | Application: | Automatic Arm Pump And Spraying Concrete |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas | Voltage: | 380V/415V/440V/660 |
| Condition: | New | Color: | Customised |
| High Light: | wet mix shotcrete machine,wet shotcrete equipment |
||

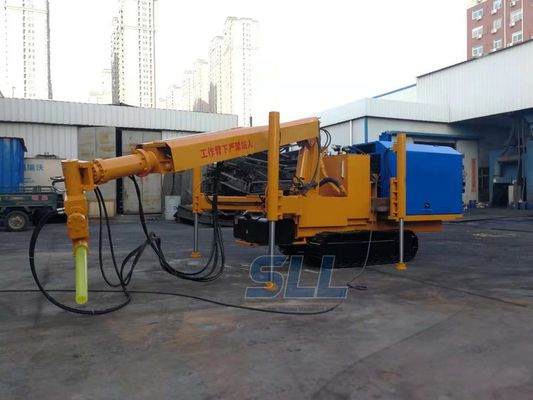

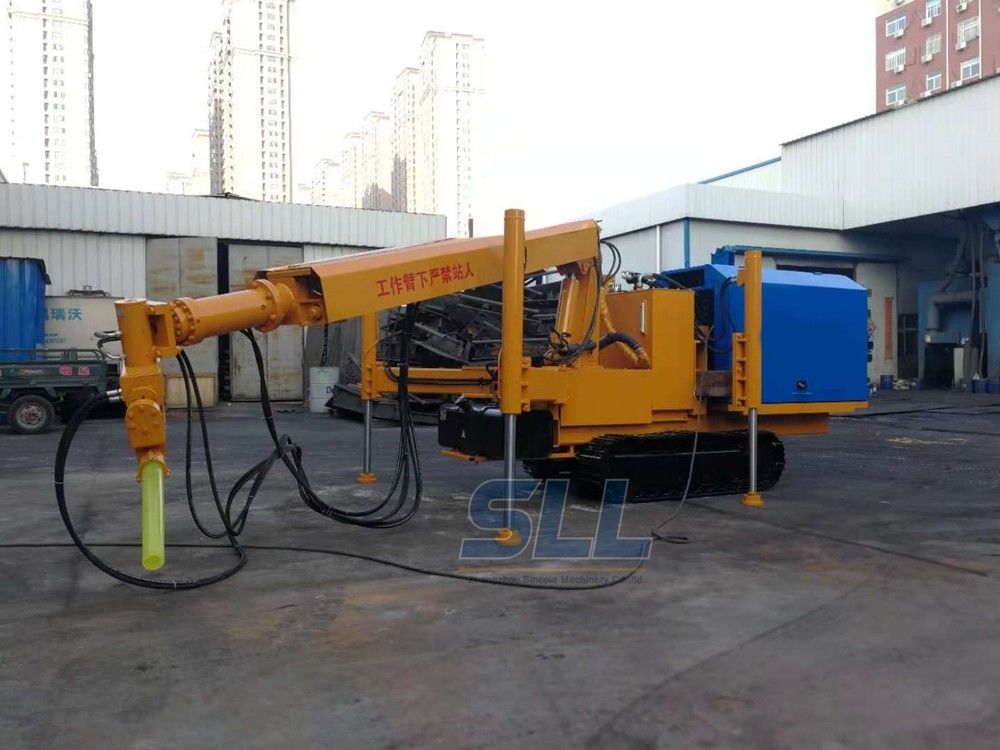

The perfect concrete spraying system of tunnel,mining and slope protection.
1. Suitable for narrow roadways The compact structure of the robot, suitable for wet or dry-wet mixing shotcrete equipment, is ideal for any work space or even for narrow tunnel construction. The four hydraulic legs ensure maximum stability during concrete spraying.
2. Easy to operate and easy to maintain The mobile concrete spraying system can be remotely controlled. The detachable shield protects the spray arm from concrete rebound and allows for quick repairs. And it can quickly allow maintenance work.
3. Retractable mechanical spray arm The retractable mechanical spray arm covers an area (range) of 7.8m and is combined with a shotcrete equipment to provide optimum spray results.
4. Robotic arm: compact, flexible and efficient Support for slope stabilization (slope stabilization), excavation support, tunnels, coal mines or small shafts in power station construction can be completed. Equipped with a retractable robotic arm, it can reach a coverage of more than 8 meters and complete the project quickly and efficiently.
The machine is suitable either for manual spraying or by means of a robotic arm.
We have 20 years produce expericence with advanced technology, rational structure, stable performance and long service life
shotcrete machine is widely used for concrete spraying operation in the tunnel, culvert, subway, hydroelectric works, underground works and high-methane laneway of coal mine.
| No | Item | Data | |
| 1 | Parameter | Dimensions (L x W x H) in transport mode | 4500*1080*2200mm |
| Weight | 3000 kg | ||
| Maximum length of operation | 8400 mm | ||
| Outrigger expansion width | 2500 mm | ||
| 2 | Boom parameters | Maximum spraying height | 8.2m |
| Maximum spraying width | 11m | ||
| Hose ID | 51mm/57mm/64mm | ||
| Arm frame telescopic distance | 2.7m | ||
| Boom expansion maximum length | 6m | ||
| 3 | Chassis | Maximum gradient of walking | 0.25 |
| Ground slope | 0.02 | ||
| Walking speed | 0.5km/h | ||
| Ground distance | 390 mm | ||
| 4 | Power | Hydraulic system output | 11 kW |
| Electric Voltage | 380v,50hZ,3Phase | ||
convey fine aggregate concrete and mortar for high buildings.
grout heat-insulated lightweight foamed cement, mortar floor heating, and self leveling for ground architecture.
spray plain concrete and fiber concrete in engineering construction.
convey and spray refractory and thermal insulation material.
spray afforestation soil in ecological environment construction.
pressure perfussion for foundation piles, back fill in over broken tunnels, railway slope supporting, and disaster management.
1. Concrete spray is suitable for dry, wet or wet and dry mixing concrete.
2. Independent hydraulic drive, 4 hydraulic legs, greatly improving the stability of the equipment during the spraying process.
3. The equipment adopts explosion-proof electrical design and can be used in underground coal mine environment.
4. Unique protective cover, can protect the robot arm.
About Us:
Zhengzhou Sincola Machinery Co., Ltd. is a high-technology, modern enterprise established in 2001, professionally engaged in the R&D and manufacturing of construction materials(concrete, mortar,cement etc)pumping and spraying.
Our main products: concrete spraying machine,concrete pumping machine, mortar spraying,plaster machine and mortar pump,hose pump, wall rendering machine etc,widely used in railway, tunnel, highway, housing construction support and other projects built facilities. Products are sold well all over the country, and exported to eastern Europe, Middle East, southeast Asia, central Asia, South Asia, Africa, the Americas, Oceania more than 30 countries and regions.
If you are interested in our products, please contact us with no hesitation. We are sure any of your questions will get our prompt attention& reply. And we are looking forward to your visit to our factory. Welcome
