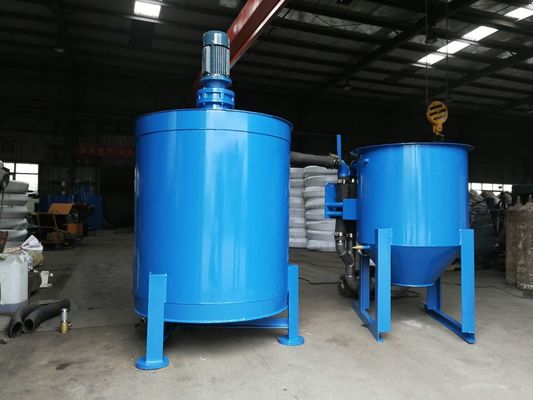

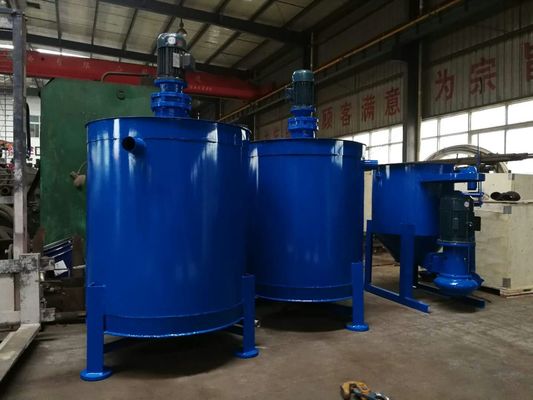

Mobile Grout Mixer Machine SM150-200 136r/ Min Mixing Drum For Cement Mortar

Manufacture Factory Mobile Cement Grout Mixer SM150-200 for Cement Mortar

Mixer use material specifications:

1. The ash, sand and other materials contained in the mixer shall have a maximum particle size of not more than 5 mm and shall not be mixed with stones and other sundries (such as nails, vegetation, etc.).

2. Mixer slurry ratio: according to the mortar pump slurry requirements material selection and configuration.

3. The consistency of the slurry stirred by the mixer is in accordance with the requirements of the mortar pump.

SM150-200/SM250-700 Grout Mixer Technical Parameters

Feathers of grout mixer machine

1. cement mixer have double-deck chambers, including the upper chamber for slurry mixing and the lower chamber for slurry storage.

2. Reasonable structure, high efficiency and simple operation.

3. High production efficiency, well material mixing uniformity, small size, light weight, flexible movement, easy maintenance and cleaning.

4. Superior abrasion resistance parts. Mixer blades are made of die stamping, no distortion, high strength.

Application:

1. SL Series Cement Mixer is usually equipped with grouting pump and slurry pump to mix and store slurry. It can be fixed on the wet/dry concrete shotcrete machine or shotcrete/concrete pump for cement/concrete/mortar mix.

2. Cement mixer is widely used in concrete/shotcrete construction of tunnel, culvert, subway, slope reinforcement, hydroelectric works, underground works and high-methane lane way of coal mine etc.

Operation of Grout Mixer Machine

Close the valve. Add the water into the grout-making tank and start the tank. The water should flow violently, then,add the cement in a certain ratio. Cement and water is compounded quickly. Stop the motor until the grout is compounded well (about 3 minutes).

1. After the grout is compounded well, start the store tank.Turn the valve handle to open the valve, the grout is discharged into the store tank. After discharging, close the valve.
2. Open the discharge valve of the store tank and start the grouting pump to do the grouting work.
3. Repeat 1 and 2.
4. Clean the grout-making tank and store tank in time after the work finish

Company Profile

Having many years foreign trade experience, Zhengzhou Sincola Machinery Co.,Ltd has grown into an excellent Grout Mixer manufacturer manufacturer and exporter.
Number of Employees: 50-100
Main Markets:
Asia(Saudi Arabia, Kuwait, UAE, Lebanon, Singapore etc) African (South Africa Nigeria, Sudan etc), Europe(Belgium Romania, Switzerland, Macedonia etc) Australia
Export Percentage: 30% - 50%
Product:
Plaster machine
Shotcrete machine
Shotcrete pump
Concrete pump
Mortar pump
Spraying machine
Industrial hose pump equipment
Automatic rendering machine

If you need these machines, please don't hesitate to contact me.
