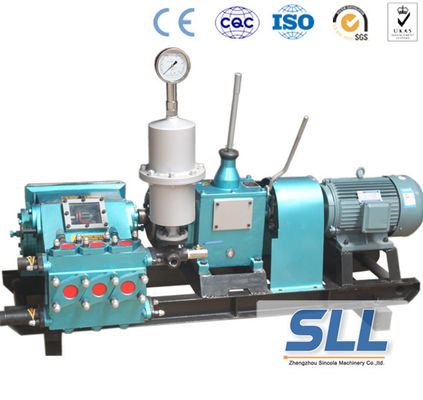

Small Slurry Cement Grouting Pump 250L/Min Hydraulic Portable Mortar Type

China Small Slurry Cement Grouting Pump 250L/Min Hydraulic Portable Mortar Type supplier
Small Slurry Cement Grouting Pump 250L/Min Hydraulic Portable Mortar Type supplier Small Slurry Cement Grouting Pump 250L/Min Hydraulic Portable Mortar Type supplier Small Slurry Cement Grouting Pump 250L/Min Hydraulic Portable Mortar Type supplier Small Slurry Cement Grouting Pump 250L/Min Hydraulic Portable Mortar Type supplier

Large Image :  Small Slurry Cement Grouting Pump 250L/Min Hydraulic Portable Mortar Type

Product Details:

Place of Origin: China
Brand Name: Sincola
Certification: CE
Model Number: SBW

Payment & Shipping Terms:

Minimum Order Quantity: 1 SET
Price: Negotiable
Packaging Details: wooden case packing
Delivery Time: 5-8 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1000 set per month
Contact Now
Detailed Product Description
Name: Cement Grouting Pump Power Type: Electric
Type: Slurry Grouting Pump Warranty: 1 Year
After-sales Service Provided: Video Technical Support Output: 250L/min
High Light:

concrete grout pump

,

cement injection grouting pump

Small Slurry Mud Pumps 250L/min Hydraulic Portable Mortar Cement Grouting Pump

Mud pump is an important equipment for geological drilling which delivers enough circulating mud water into well,
1. to bring rock cutting to ground,
2. to cool drill bits,
3. to lubricate drill stem,
4. to protect wall of well.
BW-250 has multi-speed shift gears for variable displacement, which is compact structure, light weigh, easy to move and operate.



Technology parameter

Model Pump speed
(r/min)
Output
(L/min)
Pressure
(Mpa)
Input speed
(r/min)
Inlet pipe ID
(mm)
Outlet pipe ID
(mm)
Motor power
(KW)
Dimension
(mm)
Weight
(kg)
SBW150 222 150 1.8 580 51 25-32 7.5 1155*795*995 500
130 90 3.2
86 58 4.8
57 38 7
183 125 2.3
107 72 4
71 47 6
47 32 7
SBW160 200 160 2.5 610 51 32 11 1100*995*650 700
132 107 4
83 67 6.5
55 44 10
SBW250 200 250 2.5 500 76 51 15 1100*995*650 760
116 145 4.5
72 90 6
42 42 6
SBW320 214 320 4.0 500 76 51 30 1280*855*750 600
153 230 5.0
109 165 6.0
78 118 8.0

Application

Piston grouting pump for the processing of pressure grouting.
The machine is suitable for grouting with either of single slurry and two different slurries.
It can be widely used for tunnels, slope, mining, bridge and all sorts of underground engineering etc.



Features of slurry mud pumps
(1) The pumping capacity is adjustable to meet different demands of injection or drilling technology.
(2) The total displacement in a unit time is basically constant and the impact of discharge pressure variance upon the total displacement is negligible.
(3) Throttle nuts are conveniently used to control and shield pressure.
(4) For the sake of safety in production, no exterior moving parcel is involved when the pump is running in operating mode.
(5) Antifriction materials are adopted in the production of sealing element which can enjoy a long performance life. .
(6) It's easy to install and dismantle this pump.
(7) This pump is compact in size, light in weight and agile in removal.

Small Slurry Cement Grouting Pump 250L/Min Hydraulic Portable Mortar TypeSmall Slurry Cement Grouting Pump 250L/Min Hydraulic Portable Mortar Type
