|Model Number:||SG50-40||Application:||Spraying, Submersible|
|Output:||50L/min||Working Pressure:||5 MPa(50bar)|
|Piston Stroke:||145 Mm||Cylinder Diameter:||90 Mm|
|Piston Speed:||82 /min||Product Name:||Mortar Pump|
mortar spraying machine,
mortar mixer pump machine
SG5040 MORTAR PUMP with single cylinder and double acting is widely used for its convenient maintenance, high working pressure and high efficiency, working reliability, compact structure etc. it can be used not only for grouting cement mortar and sand mortar, combined with accessories such as compressor and spraying gun, it is also perfect equipment applied in spraying. It is widely used for grouting in mine gallery, rail and road tunnel, hydropower construction, slope consolidation, underground engineering, subway and civil engineering etc.
1. single piston single acting;
2. Switch by ball valve;
3. Mechanical transmission, lower failure rate;
4. Integrate pump head and hopper; prevent eduction and deposition together with the paddle agitating;
5. Compact structure, convenient for maintaining ;
Single Cylinder Mortar Pump is widely used for its convenient maintenance.it can be used not only for grouting cement mortar and sand mortar, combined with accessories such as compressor and spraying gun, it is also ideal equipment applied in spraying. It is widely used for grouting in mine gallery, rail and road tunnel, hydropower construction, slope consolidation, underground engineering, subway and civil engineering etc.
The SG5040 Mortar Pump is available in the following versions.

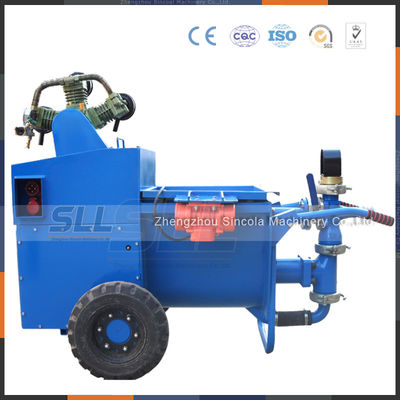

BASIC Electric drive

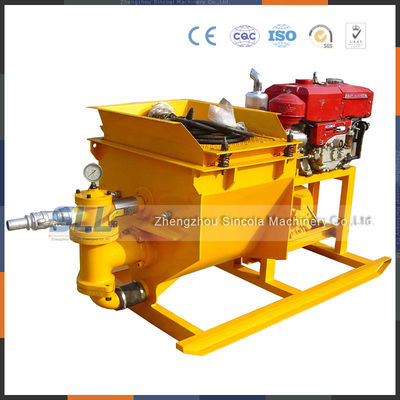

DIESEL engine drive
|Cylinder Dia||φ 90 mm|
|Working Pressure||4 MPa(40bar, 580psi)|
|Piston stroke||85 mm|
|Piston Speed||95 /min|
|Inlet diameter||75 mm|
|Outlet diameter||50 mm|
|Max. Aggregate. size||6 mm|
|Overall Dimensions||1610× 1024× 900 mm|
Packing: Wooden case with international standard or according to your requirement;
SG50-40 Packing Size of machine: L×W×H=1810× 1224× 1100 mm
Weight of machine:380kg (After packed in wooden case)
1. We are manufacturer company.
2. with over 20 years experience to produce construction machinery
3. Engineers available to your countries for machine.
4. 15 days delivery after received you deposit, one year Guaranteed.
5. The international packing standard of wooden case packing or as customers' needs
6. provide product details in the process of production
7. we can provide Trade Assurance. you will get 100% Money Refund FOR quality problem or late shipment.
8. Provide a complete set of accessories for free.
When you buy, Detailed User Manual in English, Certificate of Approval, Detailed shipping list, warranty card ects will put together with machine for you, take machine testing video and picture for you; any time welcome you come to visit our factory to check it, and any questions online always answer for you.
