Road Slope Protection Mini Concrete Pump , 7-9m3/H Concrete Spraying Machine

China Road Slope Protection Mini Concrete Pump , 7-9m3/H Concrete Spraying Machine supplier
Road Slope Protection Mini Concrete Pump , 7-9m3/H Concrete Spraying Machine supplier Road Slope Protection Mini Concrete Pump , 7-9m3/H Concrete Spraying Machine supplier

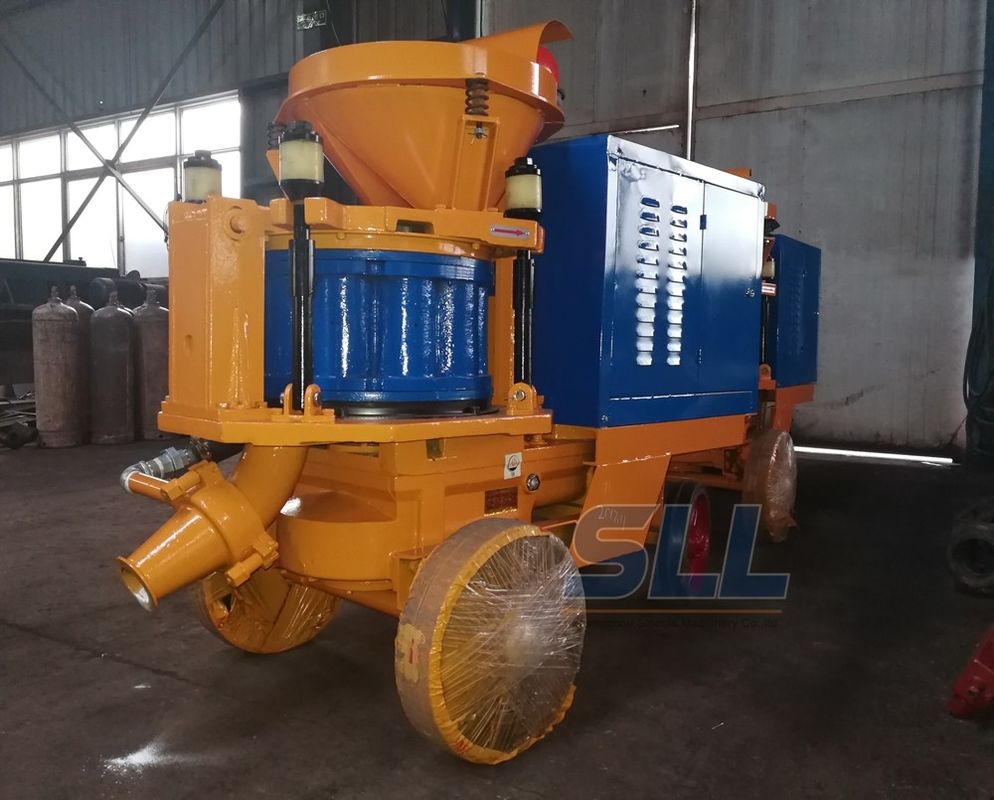

Large Image :  Road Slope Protection Mini Concrete Pump , 7-9m3/H Concrete Spraying Machine

Product Details:

Place of Origin: CHINA
Brand Name: SINCOLA
Certification: CE, ISO, BV
Model Number: SPZ-9

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: wooden case with international standard
Delivery Time: 5-10 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 20 sets per 10 days
Contact Now
Detailed Product Description
Hose Inner Diameter: 57 Mm, 64mm Max. Conveying Distance: Horizontal 200m Vertical 50m
Product Name: Shotcrete Machine/ Gunite Equipment Output: 7-9m3/h
Power(w): 7.5KW Application: Dry Or Damp Concrete Spray Work,Building Site,tunnel Building Mine
Max Aggregate Size: 20mm Weight: 900kg
High Light:

cement spray machine

,

concrete cement sprayer

Road Slope Protection Dry and Half Wet Shotcrete Machine SPZ-9

Road Slope Protection Mini Concrete Pump , 7-9m3/H Concrete Spraying Machine

Introduction

Dry Mix Shotcrete Machine:
1. SPZ series shotcrete machine can be used to spray dry and half wet concrete material and so on.

2. We have 20 years produce expericence with advanced technology, rational structure, stable performance and long service life

3. SPZ series shotcrete machine is widely used for concrete spraying operation in the tunnel, culvert, subway, hydroelectric works, underground works and high-methane laneway of coal mine.





Technical Parameters of SPZ-9 Dry Mix Concrete Shotcrete Machine:

Model SPZ-9 SPZ-9D SPZ-9A
Drive Type Electric Type Diesel Engine Type Air Motor Type
Output 9 m3/h 9 m3/h 9 m3/h
Max.conv.dist 150 150 150
Water cement ratio < 0.4 < 0.4 < 0.4
Max.Aggregate.size 20mm 20mm 20mm
Hose inner size φ57/64 mm φ57/64 mm φ57/64 mm
Operating air pressure 0.2-0.6 MPa 0.2-0.6 MPa 0.2-0.6 MPa
Air consumption 9-11 m3/min 9-11 m3/min 18-22m3/min
Motor power 7.5 kW 22hp ---
Dimension(LxHxW) 1500x830x1220mm 2250830x1220mm 1500x830x1220mm
Weight 890kg 970kg 920kg
Voltages

220V/380V/400V/415V/

440V/660V 50Hz/60Hz


Basic chassis 1. Tyre; 2. Skid; 3. Rail-wheel

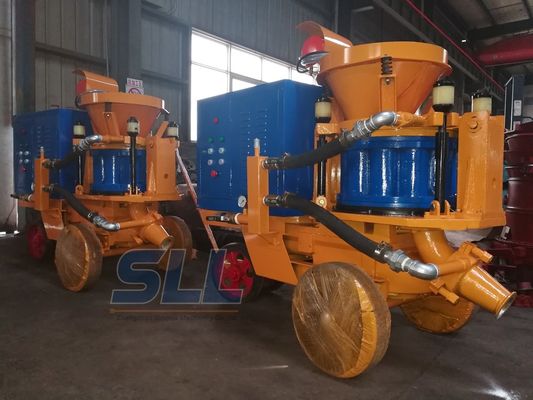

Road Slope Protection Mini Concrete Pump , 7-9m3/H Concrete Spraying Machine

Price And Quality:


1. We are direct manufacturer of kinds of construction machinery,so the factory price will be good performance
2. And, about the machine electric motor, electrical apparatus element, flow output also adjustable, electric voltage etc, can customize.
3. About the shotcrete machine, many details and dessign we are modified every year according to the customers needs ,for example dry mix shotcrete machine dedusting, flow adjust through transducer, feeding machine for shotcrete machine etc.





Applications Of Dry shotcrete machine

Middle-size rotary shotcrete machine, to spray the dry or damp concrete mixture in tunnel, under mine, deep-foundation engineering, slope engineering, swimming pool etc.



We also have wet shotcrete machine, shotcrete pump, large capacity concrete spraying system (automatic shotcrete machine with robot arm),concrete pump, mortar mixer, mortar pump, mortar spraying plaster machine, grouting mixer, grouting pump, hand grouting pump, hose pump



Road Slope Protection Mini Concrete Pump , 7-9m3/H Concrete Spraying Machine

Features of shotcrete concrete machine


1. Non-adhesion going-through rotor with new material chamber, completely eliminate bonding and blocking during operation so as to reduce clearance and maintenance period.
2. Thin flow conveying method with vortex flow, so the spraying flow is even, continuous and steady, to improve the shotcrete quality.
3. Four-point clamping device make it easy to adjust the press between sealing plate and rotor disk so as to no air and dusk leak and prolong consumption parts life .
4. Low pressure and low speed vortex air transport.
5. Well compact and seal, small dust, durable rubber plate.
6. Apply to steel fiber or chemical fiber concrete spraying.

Road Slope Protection Mini Concrete Pump , 7-9m3/H Concrete Spraying Machine



Machine Accessories

Matching Spare Parts of Dry Shotcrete Machine:

Long Joint

Joint Clamp

Conveying hose

Upper sealing plate

Lower sealing plate

Rubber Elbow

Taper sleeve

Rubber Chamber

Nozzle and seat

Nozzle

Road Slope Protection Mini Concrete Pump , 7-9m3/H Concrete Spraying Machine



And, We long supply shotcrete machine and shotcrete machine parts.
Dry Mix Shotcrete Machine SPZ-3 Spare Parts;
Dry Shotcrete Machine SPZ-5 Spare Parts;
Dry Shotcrete Machine SPZ-9 Spare Parts;
Wet Shotcrete Machine SPZ3000 Spare Parts;
And our shotcrete machine parts size is standard size, it is suitable for marketing shotcrete machine.



Shipping and packing:
Packing: Wooden case
Ship and air transport is allowed

Welcome inquiry.
