Product Details:

Place of Origin: Zhengzhou Henan China
Brand Name: SINCOLA
Certification: CE
Model Number: SM200-750

Payment & Shipping Terms:

Minimum Order Quantity: One Set
Price: Negotiable
Packaging Details: Standard Exported Wooden Case Package
Delivery Time: 10-15 working days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 100 sets per month
Contact Now
Detailed Product Description
Product Name: Grout Mixer Machine Color: Red, As Your Request
Capacity: 700L Motor Power: 5.5kw
Speed Of Mixing Drum: 33r/min Warranty: 12 Months
Application: Construction Site Weight: 560 Kg
High Light:

mortar mixer machine

,

grouting pump machine

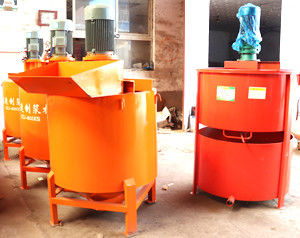

Single Layer High Work Efficiency Cement Grout Mixer Machine for Cement



Product Instruction & Application

SINCOLA SM250/700 is a high work efficiency cement grout mixer for compounding / mixing the cement and water. It consists of two separate tanks---mixing tank and agitator tank, more convenient for transportation.
It is a good work partner of SINCOLA SM series grout pumps or SH series hose pumps.
Combine with grouting pump, it can grout with pressure in mining, tunnel, culvert, subway, hydropower engineering, underground excavation engineering etc.



SM150-200/SM250-700 Grout Mixer Technical Parameters

Item SM150-200 SM250-700
Mixing tank capacity 150 L 250 L
Agitating tank capacity 200 L 700 L
Mixing speed 1500 r/min 1500 r/min
Agitating speed 136 r/min 33 r/min
Mixing Unit 3 kW 5.5 kW
Agitating Unit 1.1 kW 1.5 kW
Chassis kickstand kickstand
Dimensions 950×750×1190 mm 2650×1000×2150 mm
Weight 460 kg 560 kg
Application field Grout or other materials suitable for being mixed quickly



Main Features

1. High mixing efficiency, motor directly driving impeller to get the high-speed liquid flow, about 2~3 minutes to complete a mixing;
2. High reliability, vertical or horizontal-mounted electric motor, low failure rate and good seal;
3. Adopt the ordinary rubber pipe as consumable part for control valve, easy to get it on construction site;



Advantages

1. Tank body manufactured by the thicker plate for more reliable work and longer use life;
2. The whole stamping structure for the tank bottom;
3. Special weld handling;
4. IP55 100% new electrical motor;
5. Electrical control box manufactured by thicker plate and standard Schneider electrical elements;
6. Special-design seal structure for the pump;
7. Painted after sandblasting for a pretty appearance;

High Work Efficiency High Pressure Grout Pump High Reliability Low Failure Rate

High Work Efficiency High Pressure Grout Pump High Reliability Low Failure Rate



Operation of Grout Mixer Machine

Close the valve. Add the water into the grout-making tank and start the tank. The water should flow violently, then, add the cement in a certain ratio. Cement and water is compounded quickly. Stop the motor until the grout is compounded well (about 3 minutes).

  1. After the grout is compounded well, start the store tank.Turn the valve handle to open the valve, the grout is discharged into the store tank. After discharging, close the valve.
  2. Open the discharge valve of the store tank and start the grouting pump to do the grouting work.
  3. Repeat 1 and 2.
  4. Clean the grout-making tank and store tank in time after the work finish

Warranty period



1. Quality warranty period 12 months refers to the working time whichever occurs carlicr.



2. Working time means the accumulative working time of the facility after delivered from factory. Using time means the period dated from the day customers purchases the facility.



3. If the timer of the facility fails or using time and displayed working time are not consistent.



4. Warranty period will not be affected by the changes of users, or facility stop caused by any reasons.



5. Warranty period of new parts replaced during quality warranty services are the same with the facility, calculated by facility working time and using time, and will end with the warranty period of the facility.
