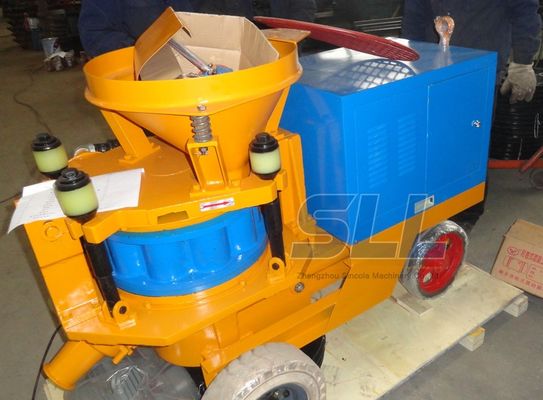

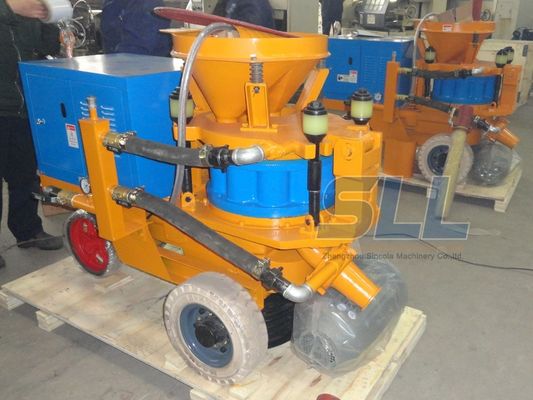

Electric Type 220V/380V Dry Shotcrete Machine SPZ Single / Three Phase

China Electric Type 220V/380V Dry Shotcrete Machine SPZ Single / Three Phase supplier
Electric Type 220V/380V Dry Shotcrete Machine SPZ Single / Three Phase supplier Electric Type 220V/380V Dry Shotcrete Machine SPZ Single / Three Phase supplier

Large Image :  Electric Type 220V/380V Dry Shotcrete Machine SPZ Single / Three Phase

Product Details:

Place of Origin: CHINA
Brand Name: SINCOLA
Certification: CE, ISO, BV
Model Number: SPZ

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: wooden case with international standard
Delivery Time: 5-10 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 20 sets per 10 days
Contact Now
Detailed Product Description
Product Name: Shotcrete Machine/ Gunite Equipment Power(w): 4KW,5.5kw,7.5kw
Application: Dry Or Damp Concrete Spray Work,Building Site,tunnel Building Mine Color: Customised,Yellow
Capacity: 5 M3/h After-sales Service Provided: Engineers Available To Service Machinery Overseas
Max Aggregate Size: 20mm Warranty: 12 Months
High Light:

concrete spraying machine

,

cement spray machine

Electric Type 220V/380V Single/Three Phase Concrete Shotcrete Machine

Electric Type 220V/380V Dry Shotcrete Machine SPZ Single / Three Phase

Introduction

Dry Mix Shotcrete Machine:
1. SPZ series shotcrete machine can be used to spray dry and half wet concrete material and so on.

2. We have 20 years produce expericence with advanced technology, rational structure, stable performance and long service life

3. SPZ series shotcrete machine is widely used for concrete spraying operation in the tunnel, culvert, subway, hydroelectric works, underground works and high-methane laneway of coal mine.





Technical Parameters of SPZ Electric Dry Mix Concrete Shotcrete Machine:

Model SPZ-3 SPZ-5 SPZ-9
Output 3 m3/h 5.5 m3/h 9 m3/h
Max.conv.dist 200 200 150
Water cement ratio < 0.4 < 0.4 < 0.35
Max.Aggregate.size 10mm 15mm 20mm
Hose inner size φ40/51 mm φ51/57mm Φ57/64 mm
Operating air pressure 0.2-0.6 MPa 0.2-0.6 MPa 0.2-0.6 MPa
Air consumption 5-6 m3/min 7-8 m3/min 9-10 m3/min
Motor power 3 kW 5.5 kW 7.5 kW
Dimension(LxHxW) 1130x1020x540mm 1350x1020x750mm 1500x1320x830mm
Weight 7500kg 780kg 890kg
Voltages 220V/380V/400V/415V/440V/660V 50Hz/60Hz
Basic chassis 1.Tyre 2.Skid 3.Rail-wheel
Driving Type Electric Motor



Price And Quality:


1. We are direct manufacturer of kinds of construction machinery,so the factory price will be good performance
2. And, about the machine electric motor, electrical apparatus element, flow output also adjustable, electric voltage etc, can customize.
3. About the shotcrete machine, many details and dessign we are modified every year according to the customers needs ,for example dry mix shotcrete machine dedusting, flow adjust through transducer, feeding machine for shotcrete machine etc.



Electric Type 220V/380V Dry Shotcrete Machine SPZ Single / Three Phase

Applications Of Dry shotcrete machine

Middle-size rotary shotcrete machine, to spray the dry or damp concrete mixture in tunnel, under mine, deep-foundation engineering, slope engineering, swimming pool etc.



We also have wet shotcrete machine, shotcrete pump, large capacity concrete spraying system (automatic shotcrete machine with robot arm),concrete pump, mortar mixer, mortar pump, mortar spraying plaster machine, grouting mixer, grouting pump, hand grouting pump, hose pump



Electric Type 220V/380V Dry Shotcrete Machine SPZ Single / Three Phase

Features of shotcrete concrete machine


1. Non-adhesion going-through rotor with new material chamber, completely eliminate bonding and blocking during operation so as to reduce clearance and maintenance period.
2. Thin flow conveying method with vortex flow, so the spraying flow is even, continuous and steady, to improve the shotcrete quality.
3. Four-point clamping device make it easy to adjust the press between sealing plate and rotor disk so as to no air and dusk leak and prolong consumption parts life .
4. Low pressure and low speed vortex air transport.
5. Well compact and seal, small dust, durable rubber plate.
6. Apply to steel fiber or chemical fiber concrete spraying.





Electric Type 220V/380V Dry Shotcrete Machine SPZ Single / Three Phase



Machine Accessories

Electric Type 220V/380V Dry Shotcrete Machine SPZ Single / Three Phase



Shipping and packing:
Packing: Wooden case
Ship and air transport is allowed

Electric Type 220V/380V Dry Shotcrete Machine SPZ Single / Three Phase



About Us:

Zhengzhou Sincola Machinery Co., Ltd. is a high-technology, modern enterprise established in 2001, professionally engaged in the R&D and manufacturing of construction materials(concrete, mortar,cement etc)pumping and spraying.

Welcome inquiry.
