Electric Mini Cement Electric Grout Mixer , 5.5kw Grouting Pump Machine

Good quality Wet Shotcrete Machine for sales
Good quality Wet Shotcrete Machine for sales
Your Shotcrete Machine really good quality and we appreciate your service!

—— Membou

I'm Online Chat Now

Electric Mini Cement Electric Grout Mixer , 5.5kw Grouting Pump Machine

China Electric Mini Cement Electric Grout Mixer , 5.5kw Grouting Pump Machine supplier
Electric Mini Cement Electric Grout Mixer , 5.5kw Grouting Pump Machine supplier Electric Mini Cement Electric Grout Mixer , 5.5kw Grouting Pump Machine supplier

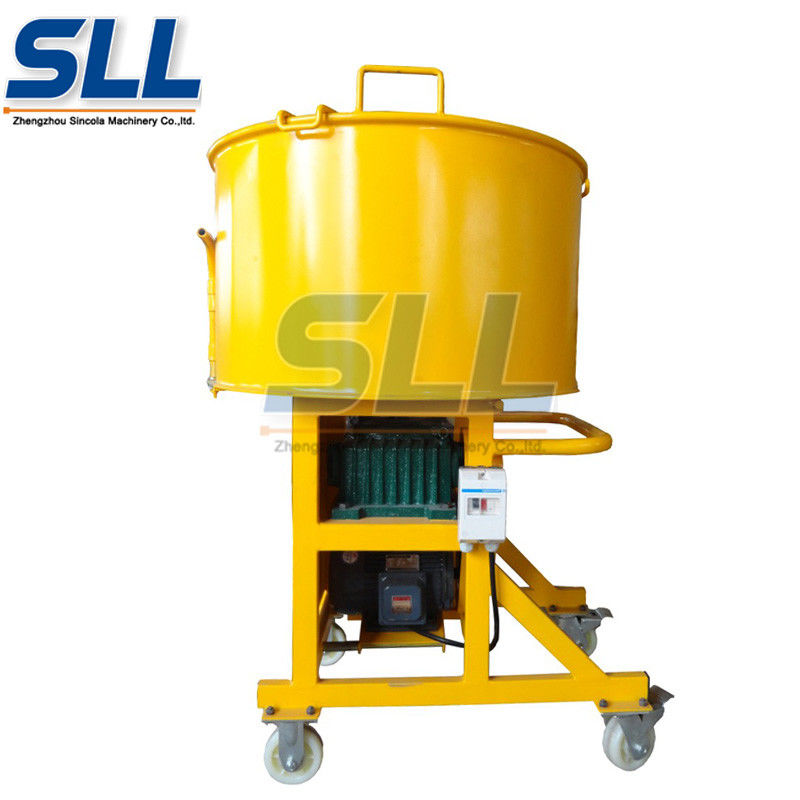

Large Image :  Electric Mini Cement Electric Grout Mixer , 5.5kw Grouting Pump Machine

Product Details:

Place of Origin: Zhengzhou Henan China
Brand Name: SINCOLA
Certification: CE
Model Number: SM200

Payment & Shipping Terms:

Minimum Order Quantity: One Set
Price: Negotiable
Packaging Details: Standard Exported Wooden Case Package
Delivery Time: 10-15 working days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 100 sets per month
Contact Now
Detailed Product Description
Product Name: Slurry Pulping Machine Color: Blue, As Your Request
Capacity: 200L Motor Power: 5.5kw
Speed Of Mixing Drum: 33r/min Warranty: 12 Months
Application: Construction Site Weight: 560 Kg
High Light:

mortar mixer machine

,

grouting pump machine

Electric Mini Cement Grouting Pump / Grout Cement Mixer Machine Single Layer



Product Description



1. The ash, sand and other materials contained in the mixer shall have a maximum particle size of not more than 5 mm and shall not be mixed with stones and other sundries (such as nails, vegetation, etc.).

2. Mixer slurry ratio: according to the mortar pump slurry requirements material selection and configuration.

3. The consistency of the slurry stirred by the mixer is in accordance with the requirements of the mortar pump.



SM150-200/SM250-700 Grout Mixer Technical Parameters

Item SM150-200 SM250-700
Mixing tank capacity 150 L 250 L
Agitating tank capacity 200 L 700 L
Mixing speed 1500 r/min 1500 r/min
Agitating speed 136 r/min 33 r/min
Mixing Unit 3 kW 5.5 kW
Agitating Unit 1.1 kW 1.5 kW
Chassis kickstand kickstand
Dimensions 950×750×1190 mm 2650×1000×2150 mm
Weight 460 kg 560 kg
Application field Grout or other materials suitable for being mixed quickly



Grout Mixer Machine Features:

1. High grout making speed, high efficiency, large volume, suitable for all kinds of grouting projects.

2. The machine adopts turbo pump to make grout, and high-speed centrifugal mixer to ensure uniform mixing and no precipitation.

3. The motor adopts vertical installation with well sealing effect and low failure rate.

4. Simple structure, no wearing parts, easy maintenance.

Grout Mixer Machine Application:

1. The machine is mainly used to make cement grout.

2. It can be equipped with grout pump and used for tunnel excavation and maintenance, mining well engineering, dam construction, foundation treatment of big bridges and high building, and pressure grouting of all kinds of underground constructions.

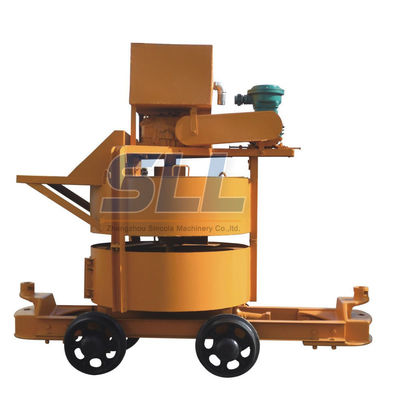

Electric Mini Cement Electric Grout Mixer , 5.5kw Grouting Pump MachineElectric Mini Cement Electric Grout Mixer , 5.5kw Grouting Pump Machine



Operation of Grout Mixer Machine

Close the valve. Add the water into the grout-making tank and start the tank. The water should flow violently, then,add the cement in a certain ratio. Cement and water is compounded quickly. Stop the motor until the grout is compounded well (about 3 minutes).

  1. After the grout is compounded well, start the store tank.Turn the valve handle to open the valve, the grout is discharged into the store tank. After discharging, close the valve.
  2. Open the discharge valve of the store tank and start the grouting pump to do the grouting work.
  3. Repeat 1 and 2.
  4. Clean the grout-making tank and store tank in time after the work finish

Warranty period



1. Quality warranty period 12 months refers to the working time whichever occurs carlicr.



2. Working time means the accumulative working time of the facility after delivered from factory. Using time means the period dated from the day customers purchases the facility.



3. If the timer of the facility fails or using time and displayed working time are not consistent.



4. Warranty period will not be affected by the changes of users, or facility stop caused by any reasons.



5. Warranty period of new parts replaced during quality warranty services are the same with the facility, calculated by facility working time and using time, and will end with the warranty period of the facility.
