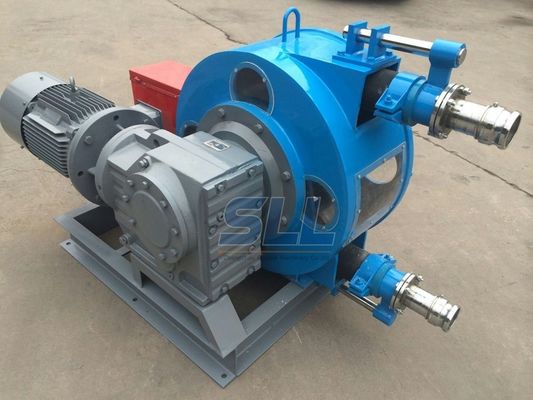

Durable Concrete Foam Transfer Industrial Peristaltic Pump Cycloidal Reducer

Good quality Wet Shotcrete Machine for sales
Good quality Wet Shotcrete Machine for sales
Your Shotcrete Machine really good quality and we appreciate your service!

—— Membou

I'm Online Chat Now

Durable Concrete Foam Transfer Industrial Peristaltic Pump Cycloidal Reducer

China Durable Concrete Foam Transfer Industrial Peristaltic Pump Cycloidal Reducer supplier
Durable Concrete Foam Transfer Industrial Peristaltic Pump Cycloidal Reducer supplier Durable Concrete Foam Transfer Industrial Peristaltic Pump Cycloidal Reducer supplier

Large Image :  Durable Concrete Foam Transfer Industrial Peristaltic Pump Cycloidal Reducer

Product Details:

Place of Origin: Zhengzhou Henan China
Brand Name: SINCOLA
Certification: CE
Model Number: SH76

Payment & Shipping Terms:

Minimum Order Quantity: one set
Price: Negotiable
Packaging Details: Standard Exported Wooden Case Package
Delivery Time: 10-25 working days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 100 sets per month
Contact Now
Detailed Product Description
Pressure: 1.0Mpa Usage: Corrosive, Inorganic Materials
Fuel: Diesel, Electric Flow Rate: 18000~28000 L/h
Warranty: One Year Product Name: Squeeze Hose Peristaltic Pump
Capacity: 0.3-50m3/h Material: Stainless Steel 304,aatural Rubber Hose
High Light:

squeeze mortar pump

,

peristaltic cement pump

Durable Concrete Foam Transfer Pump Cycloidal Reducer Squeeze Hose Pump

Sincola SH series industrial hose pump is a kind of peristaltic pump, which is suitable for handing aggressive, high viscosity, high density products, such as abrasive slurries, corrosice acids, gaseous liquid, sand/cement mortar, etc. Also is used for dosing pump with 1% repeat precision.



Hose Squeeze Pump Features:

1. No valve operation, no back flow, stable pumping flow, low fault rate.

2. Free exchange of suction inlet and discharge outlet. When the pump is blocked, reversing pump can discharge the obstruction.

3. High vacuum, strong self-suction capacity.

4. Convenient maintenance, less wearable parts (except extruded hose).

Durable Concrete Foam Transfer Industrial Peristaltic Pump Cycloidal Reducer

Technical Parameters:

Model KH76B Squeeze Hose Pump
Output 18000~28000 L/h
Rated pressure 1.0 MPa
Rev. 40~55 r/min
Hose length 1900 mm
Max. particle dia. 6 mm
Max. suction dist. 5 m
Motor power 11.0/ 15.0 KW
Reducer type Cycloidal reducer

Note:
1. Driven power could be electric motor or diesel engine.
2. Various squeeze hoses are available for pumping different materials.
3. Customized pump is available.

Hose Squeeze Pump Application:

1. Architecture: mortar,plaster,cement paste,soil slurry,silt slurry,lime slurry,foamed concrete, architectural coating, refractory,accelerator,ooze,waste water,sewage and so on.



2. Chemical: corrosive,acid,alkali,phosphate liquid,inorganic materials,crystalline liquid,suspending liquid,emulsion,resin,electroplate liquid,electrolyte solution,precipitate.



3. Agriculture: phosphate fertilizer,compound fertilizers,thick slurry, precipitated sludge.



4. Mining: gold pulp,tailings,thick pulp,filling materials,underground drainage,adsorbent,slurry, mortar...



5. Paper industry: paper pulp, liquid sulfur.



6. Food and Beverage: oil, brew, milk, confiture, salad, syrup, chocolate.



7. Oil industry: drilling fluid,crude oil.

Durable Concrete Foam Transfer Industrial Peristaltic Pump Cycloidal Reducer



Application:



Mining well project, hydropower engineering, highway (railway) tunnel, subway engineering, bridge and slope maintenance, air-raid shelter construction, municipal construction, environmental greening project, blast-furnace refractories spraying, etc.



Company Introduction



Sincola has been engaged in the research and production of hose pump for many years. With the experiences and special technology SINCOLA won a quick development on the hose pump int the recent years.



Today SINCOLA hose pumps are the very mature products wiwth different kinds of types. The work pressure can reach 1.5Mpa and the output can be 40 cubic meters/hour. SINCOLA pumps are widely applied at home and abroad. Based on the excellent work principle, SINCOLA hose pumps will have a more extensive application in the next days.



If you need more informations, please contact with me.
