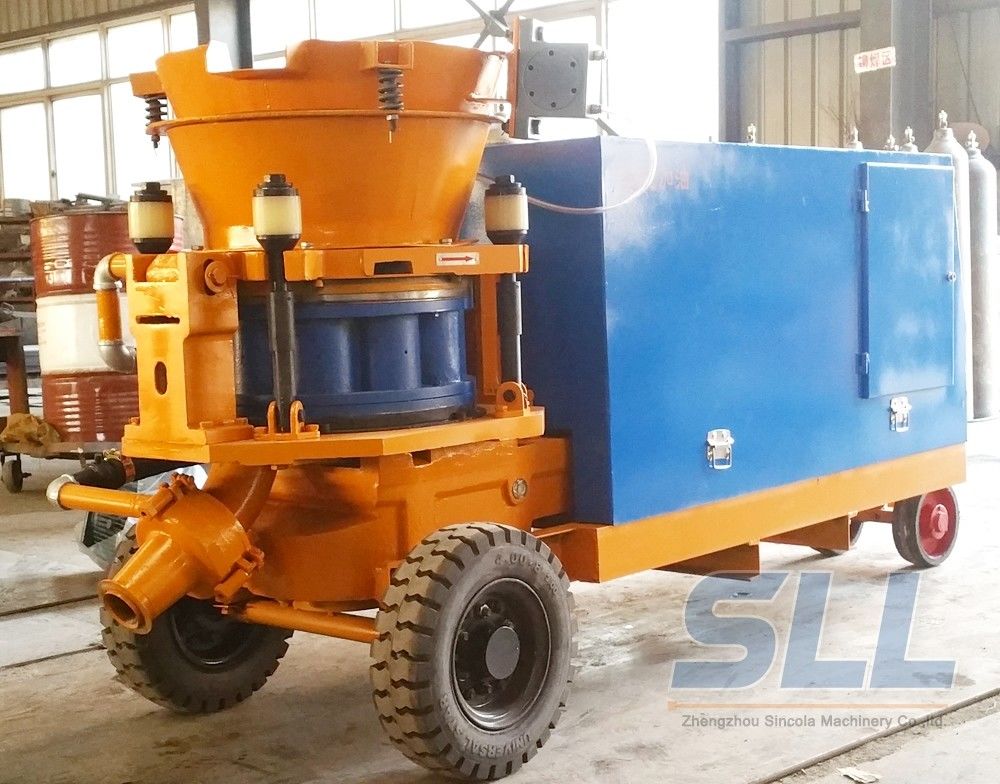

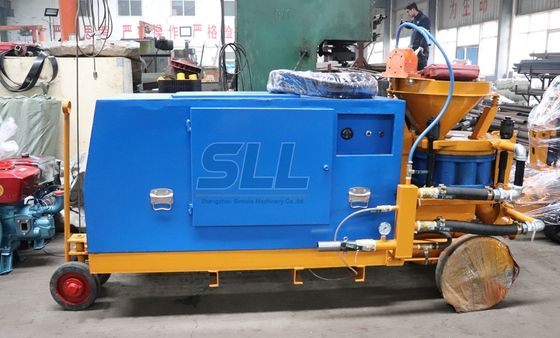

Diesel Engine Wet Shotcrete Machine 10m3/min With Air Compressor Working

China Diesel Engine Wet Shotcrete Machine 10m3/min With Air Compressor Working supplier
Diesel Engine Wet Shotcrete Machine 10m3/min With Air Compressor Working supplier Diesel Engine Wet Shotcrete Machine 10m3/min With Air Compressor Working supplier

Large Image :  Diesel Engine Wet Shotcrete Machine 10m3/min With Air Compressor Working

Product Details:

Place of Origin: CHINA
Brand Name: SINCOLA
Certification: CE, ISO, BV
Model Number: SPZ3000

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: wooden case with international standard
Delivery Time: 7-10 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 20 sets per 10 days
Contact Now
Detailed Product Description
Flow Output: 5 M3/h, 9 M3/h Warranty: 12 Months
Drive Type: Diesel Engine Product Name: Wet And Dry Mix Shotcrete Machine
Application: Spraying Concrete Condition: New
Weight: 1200kg Air Consumption: 10m3/min
High Light:

wet mix shotcrete machine

,

portable shotcrete machine

Diesel Engine Wet Mix Shotcrete Machine With Air Compressor Working

Diesel Engine Wet Shotcrete Machine 10m3/min With Air Compressor Working

Introduction

Wet Mix Shotcrete Machine:

SPZ3000 both dry and wet shotcrete spraying concrete machine description
SPZ3000 shotcrete machine is a universal concrete spraying machine for the processing of wet or dry mix. SPZ3000 due to its full pneumatic driven unit, for the required anti-explosion applications, such as coal mining, tunnel and underground engineering, this unit is perfect and specific one.
The machine is suitable either for manual spraying or by means of a robotic arm.
Basic: Electric drive can be combined with tyre chassis.
Extended (optional):diesel drive combined with Skid or Rail-wheel.

We have 20 years produce expericence with advanced technology, rational structure, stable performance and long service life

shotcrete machine is widely used for concrete spraying operation in the tunnel, culvert, subway, hydroelectric works, underground works and high-methane laneway of coal mine.



Diesel Engine Wet Shotcrete Machine 10m3/min With Air Compressor Working

Technical Parameters of SPZ3000 Wet Concrete Shotcrete Machine:

No.: Model SPZ3000D
1 Output 5-9m3/h
2 Max.convey dist. 35 m
3 Max.aggregate size Φ20 mm
4 Concrete slump 8-15 cm
5 Hose inner size φ57/64 mm
6 Operating air pressure 0.2-0.6 MPa
7 Air consumption 9-10 m³/min
8 Discharge height 1.17 m
9 Rotor Rev. 11 r/min
10 Drive Type Diesel Engine 22hp
11 Dosing pump rated pressure 0.6 MPa
12 Dosing pump output 17.5-88 L/h
13 Overall dimension 2150×950×1180 mm
14 weight 1050 kg

Diesel Engine Wet Shotcrete Machine 10m3/min With Air Compressor Working

Price And Quality:


1. We are direct manufacturer of kinds of construction machinery,so the factory price will be good performance
2. And, about the machine electric motor, electrical apparatus element, flow output also adjustable, electric voltage etc, can customize.
3. About the shotcrete machine, many details and dessign we are modified every year according to the customers needs ,for example dry mix shotcrete machine dedusting, flow adjust through transducer, feeding machine for shotcrete machine etc.





Applications Of shotcrete machin

Middle-size rotary shotcrete machine, to spray the dry or damp concrete mixture in tunnel, under mine, deep-foundation engineering, slope engineering, swimming pool etc.



We also have wet shotcrete machine, shotcrete pump, large capacity concrete spraying system (automatic shotcrete machine with robot arm),concrete pump, mortar mixer, mortar pump, mortar spraying plaster machine, grouting mixer, grouting pump, hand grouting pump, hose pump



Diesel Engine Wet Shotcrete Machine 10m3/min With Air Compressor Working

Features of shotcrete concrete machine


1. Non-adhesion going-through rotor with new material chamber, completely eliminate bonding and blocking during operation so as to reduce clearance and maintenance period.
2. Thin flow conveying method with vortex flow, so the spraying flow is even, continuous and steady, to improve the shotcrete quality.
3. Four-point clamping device make it easy to adjust the press between sealing plate and rotor disk so as to no air and dusk leak and prolong consumption parts life .
4. Low pressure and low speed vortex air transport.
5. Well compact and seal, small dust, durable rubber plate.
6. Apply to steel fiber or chemical fiber concrete spraying.



Diesel Engine Wet Shotcrete Machine 10m3/min With Air Compressor Working

Machine Accessories

Rubber Sealing Plate (upper and lower)

Rotor steel plate

Rubber Chamber

Cone Casing Pipe

Rubber Elbow

Spraying Nozzle

Nozzle base

Joint

Clamp

Convey hose

Air hose



We long supply shotcrete machine and shotcrete machine parts.
Dry Mix Shotcrete Machine SPZ-3 Spare Parts;
Dry Shotcrete Machine SPZ-5 Spare Parts;
Dry Shotcrete Machine SPZ-9 Spare Parts;
Wet Shotcrete Machine SPZ3000 Spare Parts;
And our shotcrete machine parts size is standard size, it is suitable for marketing shotcrete machine.



Shipping and packing:
Packing: Wooden case
Ship and air transport is allowed

Diesel Engine Wet Shotcrete Machine 10m3/min With Air Compressor Working
