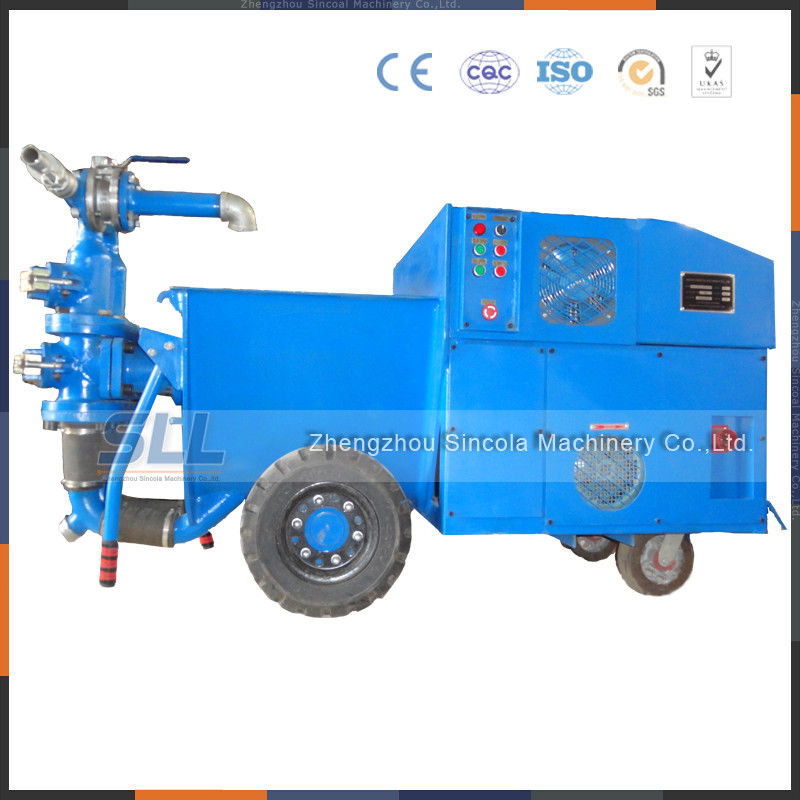

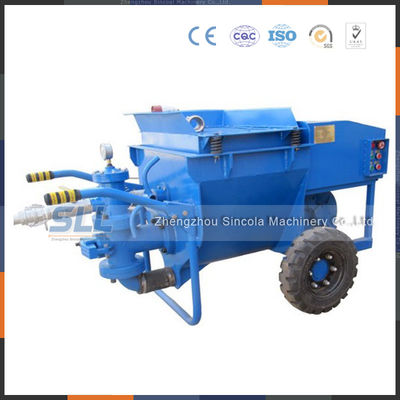

Diesel Driven Piston Mortar Pump Machine Use In Construction Machines

Good quality Wet Shotcrete Machine for sales
Good quality Wet Shotcrete Machine for sales
Your Shotcrete Machine really good quality and we appreciate your service!

—— Membou

I'm Online Chat Now

Diesel Driven Piston Mortar Pump Machine Use In Construction Machines

China Diesel Driven Piston Mortar Pump Machine Use In Construction Machines supplier
Diesel Driven Piston Mortar Pump Machine Use In Construction Machines supplier Diesel Driven Piston Mortar Pump Machine Use In Construction Machines supplier

Large Image :  Diesel Driven Piston Mortar Pump Machine Use In Construction Machines

Product Details:

Place of Origin: Zhengzhou Henan China
Brand Name: SINCOLA
Certification: CE
Model Number: SG60-50

Payment & Shipping Terms:

Minimum Order Quantity: One Set
Price: Negotiable
Packaging Details: Standard Exported Wooden Case Package
Delivery Time: 5-8 working days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 80 sets per month
Contact Now
Detailed Product Description
Model Number: SG60-50 Application: Spraying, Submersible
Output: 60L/min Working Pressure: 5 MPa(50bar)
Piston Stroke: 145 Mm Cylinder Diameter: 90 Mm
Piston Speed: 82 /min Product Name: Mortar Pump Machine
High Light:

mortar spraying machine

,

mortar mixer pump machine

Diesel Driven Piston Mortar Grout Pump Machine Use In Construction Machines



Application:

Mining well project, hydropower engineering, highway (railway) tunnel, subway engineering, bridge and slope maintenance, air-raid shelter construction, municipal construction, environmental greening project, blast-furnace refractories spraying, etc.


Diesel Driven Piston Mortar Pump Machine Use In Construction Machines

Technical Parameters:

Model Mortar Pump Machine
Output 5-7m3/h 4-5m3/h
Pressure 0-4Mpa 0-6Mpa
Power 15KW 15KW
Outlet diameter 38mm 38mm
Inlet diameter 75mm 75mm
Cylinder diameter 110mm 80mm
Cylinder qty. 2 2
Max. particle size <5mm <5mm
Suction height 2m 2m
Dimensions 1900*900*1640mm 1900*900*1640mm
Weight 550kg 520kg



Mortar Pump Features:

1. SG Series is double cylinder hydraulic cement mortar pump.

2. High working pressure, high output and high efficiency.

3. Widely used to delivery mortar grout or other construction slurry.

4. Integrate pump head and hopper; prevent education and deposition together with the paddle agitating;
5. Compact structure, convenient for maintaining ;



Mortar Pump Application:

1. hydraulic mortar pump can be used for horizontal and vertical mortar delivering or large area coating in construction engineering.

2. Filling cement grouting of road surface collapse in highway pavement maintenance.

3. Slurry injection expansion in pre-stressed engineering.

4. Dam reinforcement in water engineering.


Diesel Driven Piston Mortar Pump Machine Use In Construction Machines
Diesel Driven Piston Mortar Pump Machine Use In Construction Machines



Company Information



Our products are Shotcrete machinery and Concrete Pump,Plaster Machine,Mortar Pump,Spraying Machine,Industrial Hose Pump,Grouting Pump,Automatic rendering machine. Also we are the manufacturer,supplier and exporter of semi-automatic and full-automatic dry mortar mixing plants.large and medium size of concrete mixing plants.



Our products are well known to international market such as Russia, Uzbekistan Russia, Uzbekistan, Cyprus, Algeria, Cameroon, Macedonia, Malaysia, Austrialia, Yemen, Oman etc.



Our company engaged an international expert guidance, the study has been made a number of patents.Our technical experts from the United States, Germany, Italy and other multi-national team of experts.



Our products have widely been applying in construction, railway and super highway engineering, underground engineering, tunneling, mining operation, hydropower projects and slope stabilization.



Service



We keep the service idea of "creat more value to customers", treating our customers with all our hearts, and meantime lawfully running it. Our customers distribute in over 120 countries in Asia, Europe, Middle east,Oceania and America. We apply our professional knowledge and full global service capability to ensure the best results for our customer's business



If you have interested in these machines, please don't hesitation to contact me.
