|Pressure:||1.0Mpa||Usage:||Corrosive, Inorganic Materials|
|Fuel:||Diesel, Electric||Flow Rate:||18000~28000 L/h|
|Warranty:||One Year||Product Name:||Industrial Hose Pump|
|Capacity:||0.3-50m3/h||Material:||Stainless Steel 304,aatural Rubber Hose|
squeeze mortar pump,
peristaltic cement pump

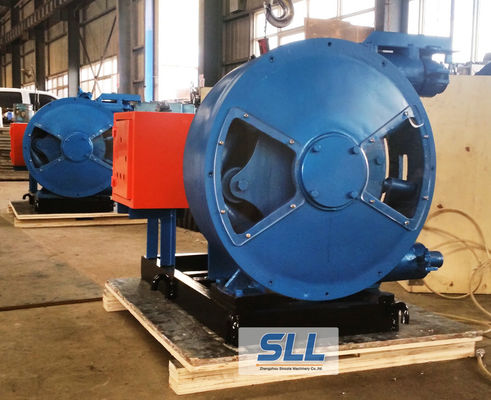

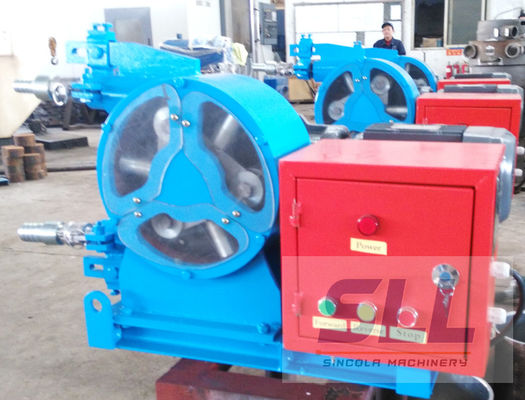

Sincola SH series industrial hose pump is a kind of peristaltic pump, which is suitable for handing aggressive, high viscosity, high density products, such as abrasive slurries, corrosice acids, gaseous liquid, sand/cement mortar, etc. Also is used for dosing pump with 1% repeat precision.
Peristaltic Hose Pump Features:
- Unique structure with no sealing element, no leakage, no pollution;
- Advanced rolling technology adopted, no need of lubrication for roller;
- High suction ability, self-cleaning ability, sucking materials in two directions;
- Simple hose installation, simple operation, easy to assemble and maintain, lower maintenance cost;
- Linear regulation of flow rate, limited measuring ability;
- No block when pumping fluid with high viscosity and foreign substance contained;
- Long service life;
- High delivery lift and output pressure.
|Model||SH38 Industrial Hose Pump|
|Rated pressure||1.0 MPa|
|Hose length||1900 mm|
|Max. particle dia.||6 mm|
|Max. suction dist.||5 m|
|Motor power||7.5 KW|
|Reducer type||Gear reducer|
1. Architecture: mortar, plaster, cement paste, soil slurry, silt slurry, lime slurry, foamed concrete, architectural coating, refractory, accelerator, waste water, sewage and so on.
2. Chemical: corrosive, acid, alkali, phosphate liquid, inorganic materials, crystalline liquid, suspending liquid, emulsion, resin, electroplate liquid, electrolyte solution, precipitate.
3. Agriculture: phosphate fertilizer, compound fertilizers, thick slurry, precipitated sludge.
4. Mining: gold pulp, tailings, thick pulp, filling materials, underground drainage, adsorbent, slurry, mortar...
5. Paper industry: paper pulp, liquid sulfur.
6. Food and Beverage: oil, brew, milk, confiture, salad, syrup, chocolate.
7. Oil industry: drilling fluid,crude oil.
8. Cosmetics industry: toothpaste, emulsion, hair conditioner, face cream, facial oil.
9. Ceramic industry: ceramic germ plasma, slip glaze, glaze materials.
10. Others: pharmaceutical liquid, radioactive liquid, textile auxiliary, adhesion agent, glue, latex.
Sincola has been engaged in the research and production of hose pump for many years. With the experiences and special technology SINCOLA won a quick development on the hose pump int the recent years.
Today SINCOLA hose pumps are the very mature products wiwth different kinds of types. The work pressure can reach 1.5Mpa and the output can be 40 cubic meters/hour. SINCOLA pumps are widely applied at home and abroad. Based on the excellent work principle, SINCOLA hose pumps will have a more extensive application in the next days.
If you need more informations, please contact with me.
