Construction Machinery Mini Portable Concrete Pump 30m3/H With Drum Mixer

Good quality Wet Shotcrete Machine for sales
Good quality Wet Shotcrete Machine for sales
Your Shotcrete Machine really good quality and we appreciate your service!

—— Membou

I'm Online Chat Now

Construction Machinery Mini Portable Concrete Pump 30m3/H With Drum Mixer

China Construction Machinery Mini Portable Concrete Pump 30m3/H With Drum Mixer supplier
Construction Machinery Mini Portable Concrete Pump 30m3/H With Drum Mixer supplier Construction Machinery Mini Portable Concrete Pump 30m3/H With Drum Mixer supplier Construction Machinery Mini Portable Concrete Pump 30m3/H With Drum Mixer supplier Construction Machinery Mini Portable Concrete Pump 30m3/H With Drum Mixer supplier

Large Image :  Construction Machinery Mini Portable Concrete Pump 30m3/H With Drum Mixer

Product Details:

Place of Origin: China
Brand Name: Sincola
Certification: CE
Model Number: JBT30S

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: wooden case packing
Delivery Time: 5-8 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1000 set per month
Contact Now
Detailed Product Description
Capacity: 30m3/h Mixing Power: 5.5kw
Warranty: 1 Year Product Name: Electric Concrete Mixer With Pump
Keywords: Small Diesel Concrete Mixer Application: Concrete Mixer Pump
High Light:

high pressure concrete pump

,

hydraulic concrete mixer

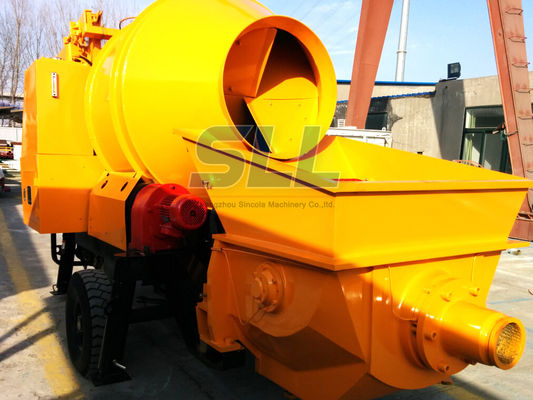

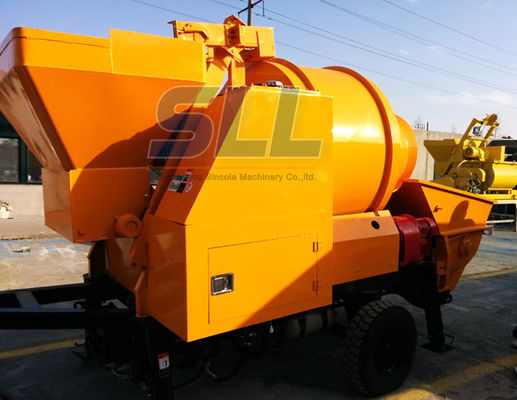

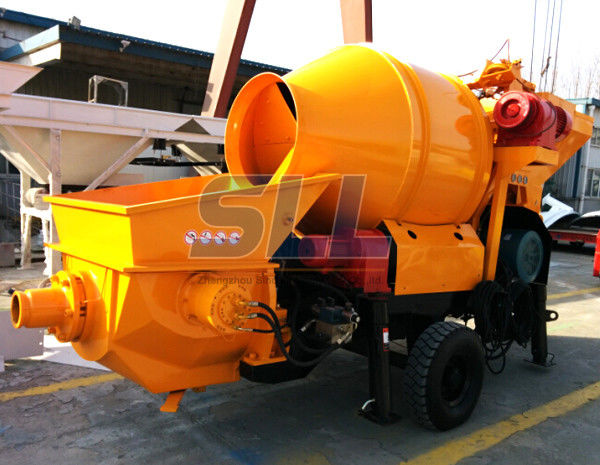

Construction Machinery Mini Portable Trailer Electric Concrete Pump with Drum Mixer

Description of protable concrete pump
Trailer concrete mixer pump is the newest products patented by our company, it is combined by thetraditional concrete pump and the mixer together, it is the most suitable used in four to six floor buildings,especially in the group buildings, bridges, and the spread of small construction sits where need theconcrete mixer at the scene.



Hydraulic system concrete mixer pump

The unique open hydraulic system and hydraulic cushion technology contribute to the smaller exchange impact and less heat of the system. Meanwhile, with the famous brand of main pump and hydraulic valve, the safety and reliability of the concrete pump are guaranteed. The hydraulic pipeline selects the high performance seamless steel pipes and all pipe joints and high pressure hoses are of the famous brands. A number of high pressure accumulators and their excellent cushion performance reduce the requirement of S pipe vale for the concrete. The concrete is delivered freely.



Pumping system concrete mixer pump

Pumping displacement variable adjustment: Change the pumping displacement according to the construction to meet the requirement of the condition. Reducing design of the hopper could release the reducing pressure of the concrete into the delivery pipe maximally, and prolong the service life of the S pipe outlet.



Parameter

Model JBT30S-13
Mixing Capacity(m3/h) 15
Pumping Capacity(m3/h) 30
Mixing Power(kw) 8
Winding Motor Power 4.5KW
Pumping Motor Power 37KW
Max. Size of Aggregates (mm) Rubble 40 pebble 30
Hopper capacity x Discharge Height (mm) 600x1070
Distribution Value S Valve
Cleaning Method Water Cleaning
Overall Dimensions L×B×H (mm) 5112×2091×3514
Weigh (kg)

4800

Service
1. installation, debugging, operators trainning;
2. maintanence:
A. when trainning your operators, our engineers will give them advice on how to operate the machines correctly;
B. we will send you the operation manual which can help you operate the machins properly, it can also help you to solve the common problems;
C. Call us at any time if you have problems about our concrete plants;
D. If needed, we will send engineers to your site to solve your problems.
3. providing some documents needed for your customs clearance, like commercial invoice, packing list, certificate of origin etc.
