60L Output Double Piston Mortar Pump Machine For Construction Building Site

China 60L Output Double Piston Mortar Pump Machine For Construction Building Site supplier
60L Output Double Piston Mortar Pump Machine For Construction Building Site supplier 60L Output Double Piston Mortar Pump Machine For Construction Building Site supplier

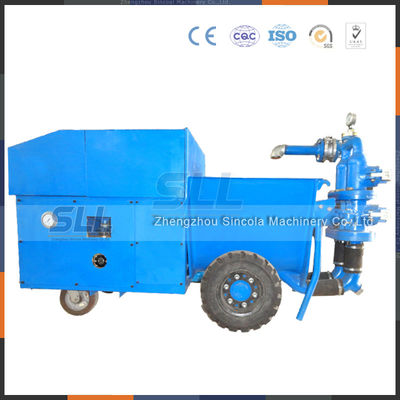

Large Image :  60L Output Double Piston Mortar Pump Machine For Construction Building Site

Product Details:

Place of Origin: Zhengzhou Henan China
Brand Name: SINCOLA
Certification: CE
Model Number: SG60-50

Payment & Shipping Terms:

Minimum Order Quantity: One Set
Price: Negotiable
Packaging Details: Standard Exported Wooden Case Package
Delivery Time: 5-8 working days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 80 sets per month
Contact Now
Detailed Product Description
Model Number: SG60-50 Application: Spraying, Submersible
Output: 60L/min Working Pressure: 5.5 MPa(55bar)
Piston Stroke: 145 Mm Cylinder Diameter: 90 Mm
Piston Speed: 82 /min Product Name: Mortar Pump
High Light:

mortar spraying machine

,

cement mortar pump

60L Output Double Piston Mortar Pump Machines for Construction Building Site



Product Description



SG60-50 reciprocating piston pump for construction with double piston and single acting is widely used in construction for its convenient maintenance, compact structure, high working pressure and high efficiency, working reliability, and it is hydraulic piston pump etc. it can be used not only for grouting cement mortar and sand mortar, combined with accessories such as compressor and spraying gun, it is also ideal equipment applied in spraying. It is widely used for grouting in mine gallery, rail and road tunnel, hydropower construction, slope consolidation, underground engineering, subway and civil engineering etc, above all, it is convenient for maintaining.


60L Output Double Piston Mortar Pump Machine For Construction Building Site

Technical Parameters:

Model Mortar Pump Machine
Output 5-7m3/h 4-5m3/h
Pressure 0-4Mpa 0-6Mpa
Power 15KW 15KW
Outlet diameter 38mm 38mm
Inlet diameter 75mm 75mm
Cylinder diameter 110mm 80mm
Cylinder qty. 2 2
Max. particle size <5mm <5mm
Suction height 2m 2m
Dimensions 1900*900*1640mm 1900*900*1640mm
Weight 550kg 520kg



Features of mortar pump

1. Single piston single acting;
2. Switch by ball valve;
3. Mechanical transmission, lower failure rate;
4. Integrate pump head and hopper; prevent education and deposition together with the paddle agitating;
5. Compact structure, convenient for maintaining ;



Mortar Pump Application:

1. hydraulic mortar pump can be used for horizontal and vertical mortar delivering or large area coating in construction engineering.

2. Filling cement grouting of road surface collapse in highway pavement maintenance.

3. Slurry injection expansion in pre-stressed engineering.

4. Dam reinforcement in water engineering.

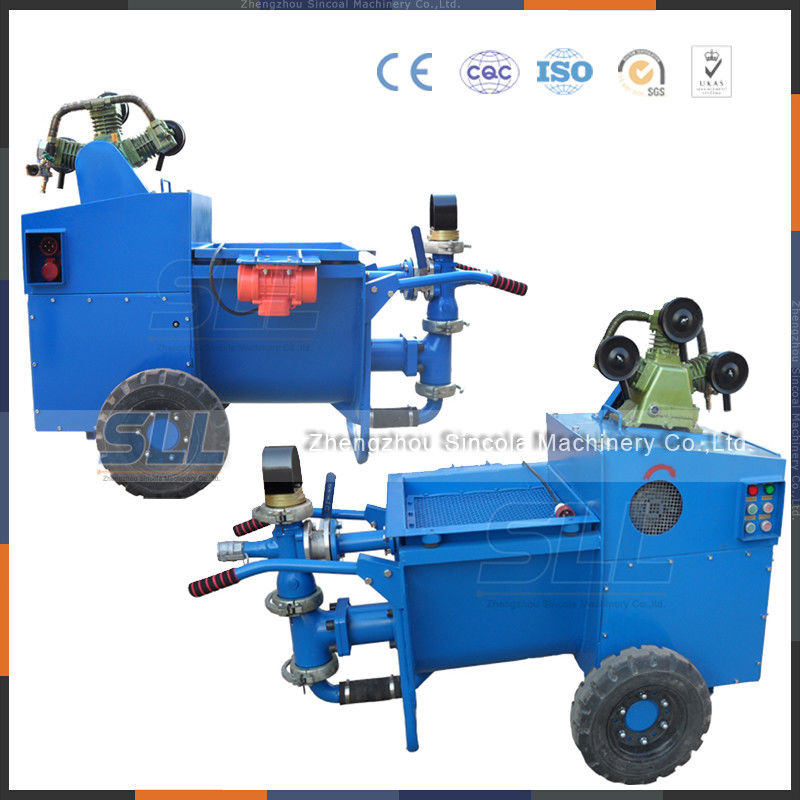

60L Output Double Piston Mortar Pump Machine For Construction Building Site
60L Output Double Piston Mortar Pump Machine For Construction Building Site
