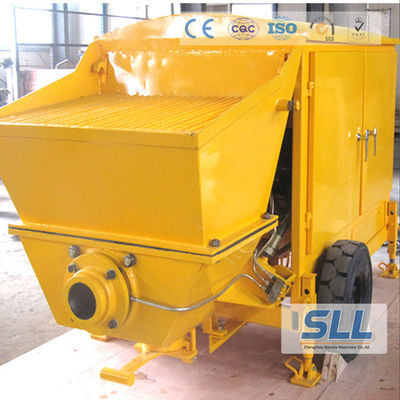

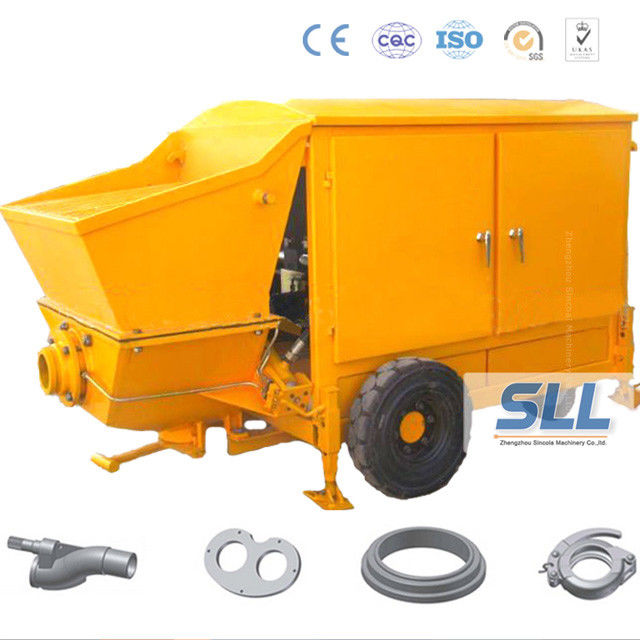

5 MPa Pressure Wet Shotcrete Machine 7m3/H Concrete Spray Injection Pump

Good quality Wet Shotcrete Machine for sales
Good quality Wet Shotcrete Machine for sales
Your Shotcrete Machine really good quality and we appreciate your service!

—— Membou

I'm Online Chat Now

5 MPa Pressure Wet Shotcrete Machine 7m3/H Concrete Spray Injection Pump

China 5 MPa Pressure Wet Shotcrete Machine 7m3/H Concrete Spray Injection Pump supplier
5 MPa Pressure Wet Shotcrete Machine 7m3/H Concrete Spray Injection Pump supplier 5 MPa Pressure Wet Shotcrete Machine 7m3/H Concrete Spray Injection Pump supplier

Large Image :  5 MPa Pressure Wet Shotcrete Machine 7m3/H Concrete Spray Injection Pump

Product Details:

Place of Origin: CHINA
Brand Name: SINCOLA
Certification: CE, ISO, BV
Model Number: SPB7

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: wooden case with international standard
Delivery Time: 20 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 20 sets per 20 days
Contact Now
Detailed Product Description
Flow Output: 7m3/h Warranty: 12 Months
Product Name: Shotcrete Pump Application: Pump And Spraying Concrete
Condition: New Max Aggregate: 25 Mm
Pressure: 5 MPa
High Light:

wet mix shotcrete machine

,

wet shotcrete equipment

Sincola SPB7 Wet Mix Shotcrete Equipment 7m3/h Concrete Spray Injection Pump

Introduction

SPB7 shotcrete pump is a piston type wet type shotcrete machine for the market demand. The use of advanced "S" for the valve, and it is suitable for the dense concrete conveyor. This pump fill the small concrete pump’s disadvantage,and also has the characteristics of large concrete pump. SPB shotcrete pump is a hydraulic pump with the Piston power, especially suitable for artificial sprayed concrete, concrete pumping and pressure grouting, the new soil Spraying, mortar spraying and refractories, it has simple structure, small size, reliable of the multi-purpose pump.

5 MPa Pressure Wet Shotcrete Machine 7m3/H Concrete Spray Injection Pump

Technical Parameters of SPB7 Shotcrete Pump:

Model Unit SPB7
Capacity m3/h 7
Max. aggregate size mm 15
Fineness modulus / ≥2.5
Delivery pipe mm DN100/DN80
Concrete slump cm 10~18
Max. horizontally conveying dist. m 150
Max. vertically conveying dist. m 80
Main motor power kw 22
Max. operating oil pressure M pa 19
Max. output pressure M pa 8
Feeding height mm 1100
Dimensions (L×W×H) mm 2990×1200×1140
Weight kg 1600

5 MPa Pressure Wet Shotcrete Machine 7m3/H Concrete Spray Injection Pump

5 MPa Pressure Wet Shotcrete Machine 7m3/H Concrete Spray Injection Pump

Application:

Convey fine aggregate concrete and mortar for high buildings; grout heat-insulated lightweight foamed cement, mortar floor heating, and self leveling for ground architecture; spray plain concrete and fiber concrete in engineering construction; convey and spray refractory and thermal insulation material; spray afforestation soil in ecological environment construction; pressure perfussion for foundation piles, back fill in over broken tunnels, railway slope supporting, and disaster management.



5 MPa Pressure Wet Shotcrete Machine 7m3/H Concrete Spray Injection Pump

Features of shotcrete concrete pump

Dense flow transportation, artificial spray, spray guns add wind; spray uniformity, stability, low consumption of wind, small rebound;
Transmission distance, the level of 150 m, vertical 70 m, effectively enhance work efficiency;
PLC control to operate more reliable, simple;
Soft-start which can protect the electrical circuit;
Two independent hydraulic circuit;
Through the hand pump of the quick-setting can adjust quick-setting level of emissions;
Since the sealed, high hardness seal ring, sealed;
Suitable for steel fiber feeding;



Shipping and packing
Packing: Wooden case
Ship and air transport is allowed

5 MPa Pressure Wet Shotcrete Machine 7m3/H Concrete Spray Injection Pump

About Us:

Zhengzhou Sincola Machinery Co., Ltd. is a high-technology, modern enterprise established in 2001, professionally engaged in the R&D and manufacturing of construction materials(concrete, mortar,cement etc)pumping and spraying.

Our main products: concrete spraying machine,concrete pumping machine, mortar spraying,plaster machine and mortar pump,hose pump, wall rendering machine etc,widely used in railway, tunnel, highway, housing construction support and other projects built facilities. Products are sold well all over the country, and exported to eastern Europe, Middle East, southeast Asia, central Asia, South Asia, Africa, the Americas, Oceania more than 30 countries and regions.
