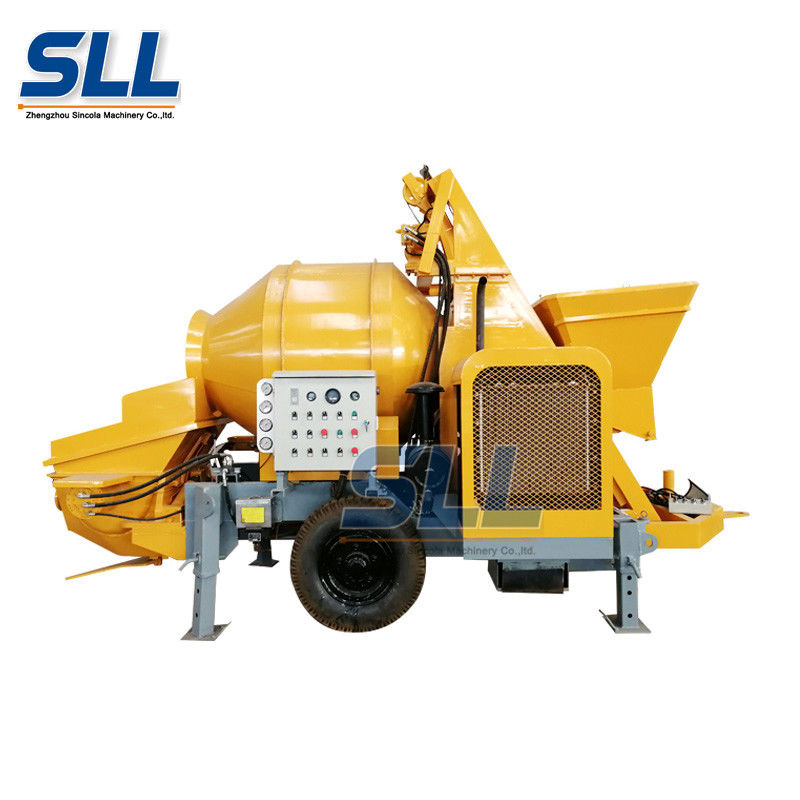

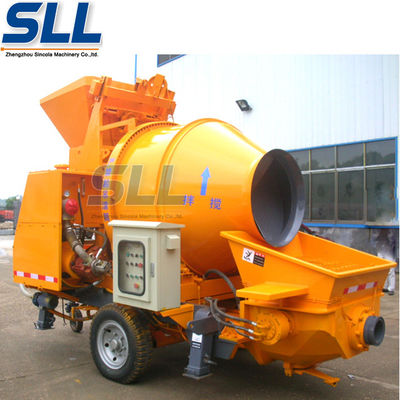

30m3/H Mobile Concrete Mixer , Useful Diesel Automatic Concrete Mixer With Pump

China 30m3/H Mobile Concrete Mixer , Useful Diesel Automatic Concrete Mixer With Pump supplier
30m3/H Mobile Concrete Mixer , Useful Diesel Automatic Concrete Mixer With Pump supplier 30m3/H Mobile Concrete Mixer , Useful Diesel Automatic Concrete Mixer With Pump supplier

Large Image :  30m3/H Mobile Concrete Mixer , Useful Diesel Automatic Concrete Mixer With Pump

Product Details:

Place of Origin: China
Brand Name: Sincola
Certification: CE
Model Number: JBT30S

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: wooden case packing
Delivery Time: 5-8 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1000 set per month
Contact Now
Detailed Product Description
Charging Capacity: 560L Mixing Power: 5.5kw
Warranty: 1 Year Product Name: Electric Concrete Mixer With Pump
Keywords: Small Diesel Concrete Mixer Application: Concrete Mixer Pump
High Light:

high pressure concrete pump

,

hydraulic concrete mixer

30m3/h Mobile Concrete Pump Useful Diesel Concrete Mixer With Pump machine Price

Description

Concrete Mixer With Pump, it is widely used to mixing and pumping the concrete for construction project. What's more, mining, tunnel, culvert, subway, hydropower engineering, underground excavation engineering etc.



Concrete mixer pump construction operation system can be used in all automated, all material mixing, high pressure pumping as one. Double cylinder hydraulic pumping system, hydraulic system greatly enhance the stirring concrete pump overall reliability and ensure pump strive foolproof work under harsh conditions.



30m3/H Mobile Concrete Mixer , Useful Diesel Automatic Concrete Mixer With Pump

Advantage

1. Use S-Valve To Switch The Direction, For Concrete mixing and delivery.

2. Good Sealing S-Valve, Installed With Floating Wear Resistant Ring.

3. High-Quality Wear Resistant Alloy Components For Long Service-Life.

4. High Delivery Pressure For Demand Of High-Rise And Long Distance Projects.

5. Use The Kawasika Main Oil Pump, Double-Loop Open Circuit Hydraulic System, Ensure Fast Direction Switching Speed And High Efficiency.

6. Air Cooling System, Without Dependence Of External Water Supply.

7. With Re-Pumping Function To Smooth Construction Of Better Accessibility.

8. Automatic Lubrication System For Long Service-Life.

9. PLC System To Ensure Best Electrical Control Performance.

10. Equipped With Wired Or Wireless Remote Controller, Easy To Operate.



Parameter

Model JBT30S-13
Mixing Capacity(m3/h) 15
Pumping Capacity(m3/h) 30
Mixing Power(kw) 8
Winding Motor Power 4.5KW
Pumping Motor Power 37KW
Max. Size of Aggregates (mm) Rubble 40 pebble 30
Hopper capacity x Discharge Height (mm) 600x1070
Distribution Value S Valve
Cleaning Method Water Cleaning
Overall Dimensions L×B×H (mm) 5112×2091×3514
Weigh (kg) 4800



Application

1. pump concrete, fine aggregates such as fine stone and mortar etc.
2. pump heat-insulated lightweight foamed cement, mortar floor heating, and self leveling for ground architecture.
3. pump plain concrete and fiber concrete in engineering construction.
4. pump refractory and thermal insulation material.
5. pump afforestation soil in ecological environment construction.
6. pressure perfussion for foundation piles, backfill in overbroken tunnels, railway slope supporting, and disaster management.

30m3/H Mobile Concrete Mixer , Useful Diesel Automatic Concrete Mixer With Pump

30m3/H Mobile Concrete Mixer , Useful Diesel Automatic Concrete Mixer With Pump
