220V / 380V Cement Plaster Spray Machine Mortar Lining Stucco Equipment

Good quality Wet Shotcrete Machine for sales
Good quality Wet Shotcrete Machine for sales
Your Shotcrete Machine really good quality and we appreciate your service!

—— Membou

I'm Online Chat Now

220V / 380V Cement Plaster Spray Machine Mortar Lining Stucco Equipment

China 220V / 380V Cement Plaster Spray Machine Mortar Lining Stucco Equipment supplier
220V / 380V Cement Plaster Spray Machine Mortar Lining Stucco Equipment supplier 220V / 380V Cement Plaster Spray Machine Mortar Lining Stucco Equipment supplier

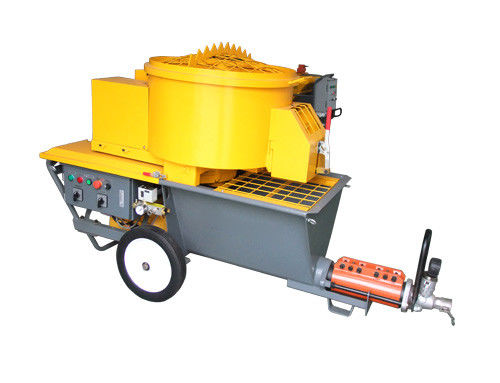

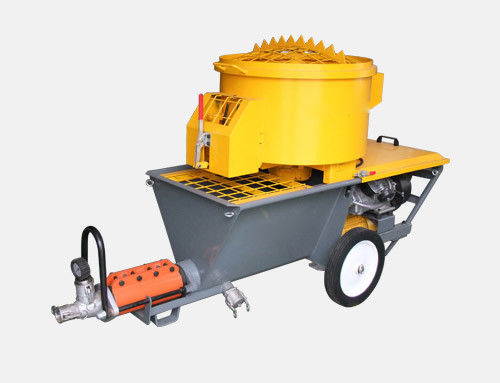

Large Image :  220V / 380V Cement Plaster Spray Machine Mortar Lining Stucco Equipment

Product Details:

Place of Origin: China
Brand Name: Sincola
Certification: CE
Model Number: SX55

Payment & Shipping Terms:

Minimum Order Quantity: 1 ser
Price: USD 3500-5800 per set
Packaging Details: wooden case packing
Delivery Time: 5-8 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1000 set per month
Contact Now
Detailed Product Description
Power(w): 5.5kw Name: Wall Plastering Machine
Usage: Wall Putty Sprayer Output: 20-40L/min
Max.Aggregate Diameter: 6mm Weight: 380kg
Dimension(l*w*h): 2300*800*1300mm Condition: New
High Light:

cement plastering machine

,

automatic plastering machine

220V/380V Mortar Lining Stucco Equipment Cement Plaster Mixing Spraying Machine

Introduction

Cement mixing spraying machine widely applied in plastering and almost all the construction projects for materials such as traditional mortar mixed on site, normal mortar, insulation mortar etc. Mixer is optional and two kinds pump cores with different capacity can be choose, its practicality and high profit make it outstangding in plastering machine.

Adapt to spraying materials: water-soluble materials such as putty powder, paint, latex paint, real stone paint, cement mortar, dry mortar, thermal insulation mortar, waterproof material, fireproof material, heat insulation material, sound absorbing material, etc.

Feature

1, Reasonable design , Integration of pumps and compressors .
2,Feeding continuous no pulse .
3,Wider practicability ,can spray powder ,mortar ,also can spray ordinary mortar .
4,Spray evenly ,adhesion is strong.
5,Multiple functions ,can either spray coating and guniting .
6,Spray gun and nozzle connection can choose any direction ,easy to operation

Working

Only three persons are required for operation. One person delivers material, one person operates the spraying gun, a third person does the assistant work (for instance: assistant to remove the hose). The whole processes such as water adding, mixing and delivery of the material etc. are implemented by the machine automatically. Compared with the manual operation, it can save manpower, material resources, money and precious time, as well makes the construction quality better and more reliable than the traditional manual operation.

Technology parameter

Model SX55
Output 20-40L/min
Power 5.5kw / 380v
Max.Aggregater diameter 6mm
Rev.of Rotor 380RPM
Rated Air Output 200L/min
Max. Conveying Dist H:40m  V:80m
Rated Working Pressure 25-40Bar
Loading Height 1250mm
Conveying Hose ID 38mm
Mixer Capacity 120L/min
Overall Dimension 2300*800*1300mm
Weight 380kg



220V / 380V Cement Plaster Spray Machine Mortar Lining Stucco Equipment

220V / 380V Cement Plaster Spray Machine Mortar Lining Stucco Equipment
