|Product Name:||Slurry Pulping Machine||Color:||Blue, As Your Request|
|Speed Of Mixing Drum:||33r/min||Warranty:||12 Months|
|Application:||Construction Site||Weight:||560 Kg|
mortar mixer machine,
grouting pump machine

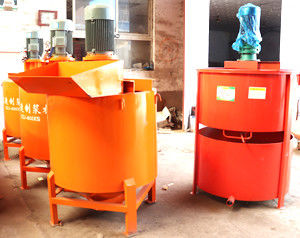

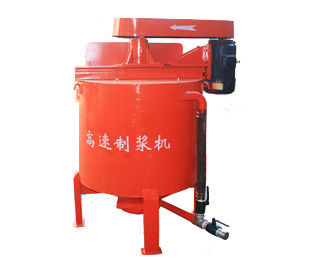

200-700L Capacity Industrial Friction Driving Grout Mixer Machine for Cement
1. The ash, sand and other materials contained in the mixer shall have a maximum particle size of not more than 5 mm and shall not be mixed with stones and other sundries (such as nails, vegetation, etc.).
2. Mixer slurry ratio: according to the mortar pump slurry requirements material selection and configuration.
3. The consistency of the slurry stirred by the mixer is in accordance with the requirements of the mortar pump.
|Mixing tank capacity||150 L||250 L|
|Agitating tank capacity||200 L||700 L|
|Mixing speed||1500 r/min||1500 r/min|
|Agitating speed||136 r/min||33 r/min|
|Mixing Unit||3 kW||5.5 kW|
|Agitating Unit||1.1 kW||1.5 kW|
|Dimensions||950×750×1190 mm||2650×1000×2150 mm|
|Weight||460 kg||560 kg|
|Application field||Grout or other materials suitable for being mixed quickly|
Feathers of grout mixer machine
1. cement mixer have double-deck chambers, including the upper chamber for slurry mixing and the lower chamber for slurry storage.
2. Reasonable structure, high efficiency and simple operation.
1. SL Series Cement Mixer is usually equipped with grouting pump and slurry pump to mix and store slurry. It can be fixed on the wet/dry concrete shotcrete machine or shotcrete/concrete pump for cement/concrete/mortar mix.
2. Cement mixer is widely used in concrete/shotcrete construction of tunnel, culvert, subway, slope reinforcement, hydroelectric works, underground works and high-methane lane way of coal mine etc.
Operation of Grout Mixer Machine
Close the valve. Add the water into the grout-making tank and start the tank. The water should flow violently, then,add the cement in a certain ratio. Cement and water is compounded quickly. Stop the motor until the grout is compounded well (about 3 minutes).
1. Quality warranty period 12 months refers to the working time whichever occurs carlicr.
2. Working time means the accumulative working time of the facility after delivered from factory. Using time means the period dated from the day customers purchases the facility.
3. If the timer of the facility fails or using time and displayed working time are not consistent.
4. Warranty period will not be affected by the changes of users, or facility stop caused by any reasons.
5. Warranty period of new parts replaced during quality warranty services are the same with the facility, calculated by facility working time and using time, and will end with the warranty period of the facility.
