Payment & Shipping Terms:
|Use:||Diamond Wire Saw Stone Cutting||Type:||Granite Wire Saw Cutting Machine|
|Keyword:||Diamond Concrete Cutting||Product Name:||Diamond Wire Saw Machine|
|Function:||Concrete Cutting Saw||After-sales Service Provided:||Online Support|
wire saw machine,
diamond wire saw cutting machine

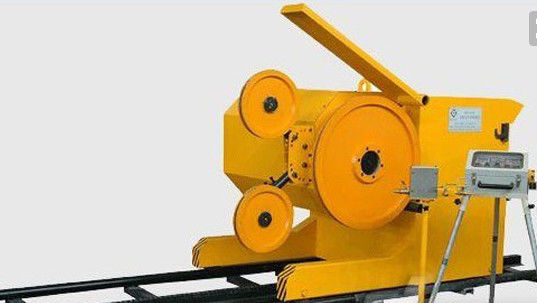

The electrical control system of our wire saw machines are with PLC and two inverters that allow to variable linear speed of wire from 0-40 M/S. The translation and 360 degree rotation of flywheel-holder head of wire saw machines are motorized and allow an easy and fast positioning of the machine, as well as the execution of two parallel cuts. All the movement of the wire saw machines are motorized and an automatic mechanism keeps always constant and programmed tension of diamond wire in working conditions. Our Wire Saw Machines are with Safety devices that shut off the machine in case of wire breakage, over voltage, over electric current, over heating of motor, incorrect maneuvers etc. The greatest advantage of our wire saw machines are safe cutting and good diamond wire durability as well as being user friendly.
1. The wire tension and cutting current is closed loop automatic controlled by PLC and inverter.
2. The cutting process can be automatical controlled accurately.
3. The movement and rotation of the cutting head is driven by motor with position Limitation Protection.
4. Machine protection functions including:wire broken,Machine overload,cutting finished,and others malfunction happened
5. Display an saving with digitization:the value of cutting current,linear speed and moving speed indicated on the panel,and the cutting time can be saved.
6. The machine without phase request.It is needn't to change and distinguish.
|Number of wheels||9pcs|
|Dual drive mode Cutting time||20min/m2|
1. Manufactured with first quality materials and components, the TSY G series is a strong and reliable machine that allows to easily make great cuts on any kind of material.
2. The feed movement is automatically controlled by PLC and inverter that allows a precise and complete management of the diamond wire during the cutting , so that to obtain the best output and production on any material.
3. The machine have protection functions which including: wire broken, machine overload, cutting finished,and other malfunction happened, so that to maintain the best efficiency of the system.
4. The motor head can move per side, in order to make two parallel cuts without moving the machine,which is driven by motor with Position Limited Function. The same device allows to make horizontal cuts at ground level without the use of any auxiliary accessories.
