15KW Mortar Plastering Machine High Working Pressure Compact Structure

China 15KW Mortar Plastering Machine High Working Pressure Compact Structure supplier
15KW Mortar Plastering Machine High Working Pressure Compact Structure supplier 15KW Mortar Plastering Machine High Working Pressure Compact Structure supplier 15KW Mortar Plastering Machine High Working Pressure Compact Structure supplier

Large Image :  15KW Mortar Plastering Machine High Working Pressure Compact Structure

Product Details:

Place of Origin: Zhengzhou Henan China
Brand Name: SINCOLA
Certification: CE
Model Number: SG60-50

Payment & Shipping Terms:

Minimum Order Quantity: One Set
Price: Negotiable
Packaging Details: Standard Exported Wooden Case Package
Delivery Time: 5-8 working days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 80 sets per month
Contact Now
Detailed Product Description
Model Number: SG60-50 Application: Spraying, Submersible
Output: 60L/min Working Pressure: 5.5 MPa(55bar)
Piston Stroke: 145 Mm Cylinder Diameter: 90 Mm
Piston Speed: 82 /min Product Name: Mortar Pump Machine
High Light:

mortar spraying machine

,

mortar mixer pump machine

High Efficiency Hydraulic Cement Grout Pump 15KW Mortar Pump Machine



Product Description

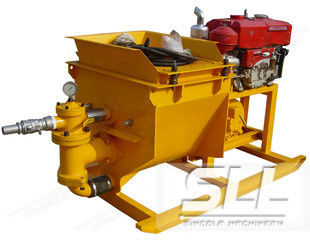

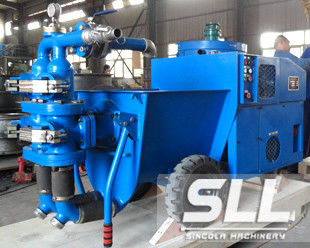

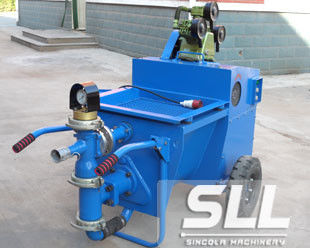

SG60-50 reciprocating piston pump for construction with double piston and single acting is widely used in construction for its convenient maintenance, compact structure, high working pressure and high efficiency, working reliability, and it is hydraulic piston pump etc. it can be used not only for grouting cement mortar and sand mortar, combined with accessories such as compressor and spraying gun, it is also ideal equipment applied in spraying. It is widely used for grouting in mine gallery, rail and road tunnel, hydropower construction, slope consolidation, underground engineering, subway and civil engineering etc, above all, it is convenient for maintaining.



15KW Mortar Plastering Machine High Working Pressure Compact Structure



SG60-50 Mortar Pump Machine Technical Parameters

Item SG60-50
Cylinder Dia φ90 mm
Output 60 L/min
Pressure 5 Mpa(50bar)
Piston stroke 145 mm
Piston Speed 82 /min
Inlet diameter 75 mm
Outlet diameter 50 mm
Max.Aggregate.size 6 mm
Cement : Sand ≥1:3
Dimensions 1400×650×920 mm
Weight 700 kg
Power unit 7.5 kW(Electric)/10hp(Diesel)
Note: Single or Double Passageway.Skid or Tyre



Features of mortar pump machine

1. Single piston single acting;
2. Switch by ball valve;
3. Mechanical transmission, lower failure rate;
4. Integrate pump head and hopper; prevent education and deposition together with the paddle agitating;
5. Compact structure, convenient for maintaining ;



15KW Mortar Plastering Machine High Working Pressure Compact Structure15KW Mortar Plastering Machine High Working Pressure Compact Structure



FAQ:

1. How many people that are need to operate this kind of machine?

Two persons, one loading the material and the other for the spraying.



2. MOQ: set can be acceptable for Trail Order.

Over 3 sets can enjoy the wholesale price.

Welcome to join us as our sales agent in your market.



3. How long the life time the main engine?

more than than years, 1 year guarantee for quality problems.



4. Does this kind of machine can work singlely?

No, it need match one air compressor to cooperate.



5. Delivery time:

1 week for Standard Model(motor: 380v 50hz 3phases)

15-25 days for Customized Model.



6. Payment:

T/T, 30% deposit,70% before shipment.

L/C at sight (high bank charge, not suggest , but acceptable).

100% T/T in advance (specially for air shipment or small amount).



7. Available Shipment:

FOB Qingdao

FOB Shanghai

FOB Tianjin



Company Information



Zhengzhou Sincola Machinery Co.,Ltd is a stated-designated manufacturer and exporter of road and building construction machines. We are the one of the big manufacturer and supplier in China .



Our products are Shotcrete machinery and Concrete Pump, Plaster Machine, Mortar Pump, Spraying Machine, Industrial Hose Pump, Grouting Pump, Automatic rendering machine. Also we are the manufacturer, supplier and exporter of semi-automatic and full-automatic dry mortar mixing plants. large and medium size of concrete mixing plants.



Our company engaged an international expert guidance, the study has been made a number of patents. Our technical experts from the United States, Germany, Italy and other multi-national team of experts.



If you have interested in these machines, please don't hesitation to contact me.
